In my previous post, I showed you how to build a single C# AI agent with the Microsoft Agent Framework (MAF) — streaming, function tools, and multi-turn memory — using a free model through OpenRouter.

A single agent is a great start. But the real reason frameworks like MAF exist is the next step: getting multiple agents to work together. In this post, I’ll show you two ways to do that, building on the same project:

• A sequential workflow — two agents in a pipeline, where you decide the order.
• An orchestrator agent — a top-level agent that decides for itself which specialists to call.

As before, everything runs on the same free NVIDIA model via OpenRouter — no paid keys required.

The full source is on GitHub: MicrosoftAgentFrameworkDemo (see samples/02-multi-agent-sequential and samples/03-orchestrator-agent).

Why multi-agent?

Before any code, let’s talk about why you’d want more than one agent — because this is where the real value is, and it’s easy to miss if you jump straight to the API.

Imagine you want an AI to write a marketing tagline and critique it. You could cram everything into one giant agent:

“You are a copywriter AND an editor. Write a tagline, then put on your editor hat, review your own work, fix it, and explain what you changed…”

That works for a demo, but it has real problems:

• One bloated prompt doing several jobs — hard to read, hard to tune.
• Mixed concerns — the “writer” voice and the “editor” voice fight inside one set of instructions.
• No real second opinion — an agent grading its own homework rarely pushes back on itself.

The multi-agent approach flips this. You create small, focused specialist agents — each with one job and its own tight instructions:

• A Writer that only knows how to draft a punchy tagline.
• A Reviewer that only knows how to sharpen a draft and say what it changed.

The benefits are the kind you feel as a developer:

• Separation of concerns — each agent’s instructions stay short and clear.
• A genuine review step — a separate Reviewer actually critiques the Writer’s output.
• Easier to reason about, test, and evolve — you can tweak one agent without touching the other, or even point each agent at a different model.

So the question becomes: once you have specialist agents, how do you coordinate them? MAF gives you two answers.

Two ways to coordinate agents

Let’s build both.

Prerequisites

• .NET 10 SDK
• A free OpenRouter API key — see the setup walkthrough in my Sample 01 post (sign up, generate a key, drop it into appsettings.Development.json).

Both samples reuse the exact OpenRouter client setup from Sample 01 — OpenRouter is OpenAI-compatible, so we point the OpenAI SDK at OpenRouter’s endpoint and wrap it as an IChatClient. One small note on packages:

• Sample 02 adds one NuGet package: Microsoft.Agents.AI.Workflows (for the workflow builder).
• Sample 03 needs no new package — agents-as-tools lives in the core Microsoft.Agents.AI.

Part 1 — Sample 02: a sequential multi-agent workflow

Our scenario is a tiny content pipeline: you type a product or topic, the Writer drafts a tagline, and the Reviewer sharpens it. The Writer’s output flows into the Reviewer automatically.

It starts with two ordinary agents — exactly like Sample 01, nothing special:

AIAgent writer = chatClient.AsAIAgent(
    instructions: """
        You are a concise copywriter. Given a product or topic, write ONE punchy
        marketing tagline (max ~12 words). Output only the tagline — no preamble.
        """,
    name: "Writer");
AIAgent reviewer = chatClient.AsAIAgent(
    instructions: """
        You are a sharp marketing editor. You will be given a draft tagline.
        Rewrite it to be punchier and clearer, then on a new line add exactly:
        Changed: <one short sentence on what you changed and why>
        """,
    name: "Reviewer");

Now the one line that turns those two agents into a pipeline:

Key MAF Concept — AgentWorkflowBuilder.BuildSequential Composes agents into a pipeline. The Writer’s output automatically becomes the Reviewer’s input, in the order you list them. You don’t write any “now call the reviewer” routing code.

Workflow workflow = AgentWorkflowBuilder.BuildSequential([writer, reviewer]);

To run it, MAF executes the whole workflow in-process and streams events back as each agent works:

var messages = new List<ChatMessage> { new(ChatRole.User, userInput) };
await using StreamingRun run = await InProcessExecution.RunStreamingAsync(workflow, messages);
await run.TrySendMessageAsync(new TurnToken(emitEvents: true));
string? lastExecutorId = null;
await foreach (WorkflowEvent evt in run.WatchStreamAsync())
{
    if (evt is AgentResponseUpdateEvent update)        // a streamed text chunk from an agent
    {
        if (update.ExecutorId != lastExecutorId)       // a new agent started talking
        {
            lastExecutorId = update.ExecutorId;
            Console.Write($"\n[{update.ExecutorId}]: ");
        }
        Console.Write(update.Update.Text);
    }
    else if (evt is WorkflowOutputEvent)               // the pipeline finished
    {
        break;
    }
}

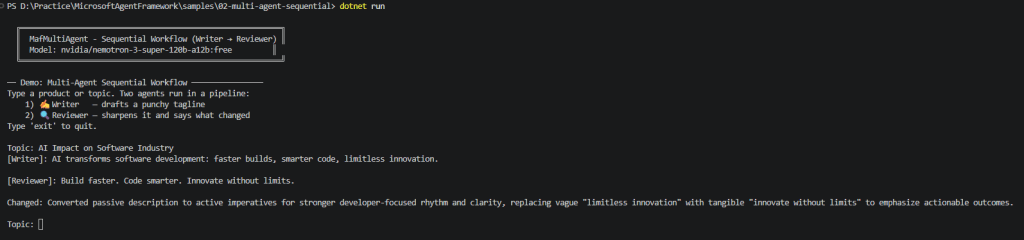

The key thing to notice is the event stream: each AgentResponseUpdateEvent tells you which agent (ExecutorId) is producing text. (One small detail: the workflow gives each agent an ExecutorId like Writer_a1b2c3…, so in the repo I trim the suffix to print a clean [Writer] label.) When you run it:

The real value here: the Reviewer never sees “you are also a writer.” It only ever receives “improve this draft”.

Part 2 — Sample 03: an orchestrator agent

The sequential workflow is clean, but notice its limitation: the order is hardcoded. BuildSequential([writer, reviewer]) will always run the Writer once and the Reviewer once, in that order — because I wrote it that way.

But what if I want the agent to decide? Draft once, maybe review twice, maybe skip the review if the draft is already great? For that, I don’t want a fixed pipeline — I want an orchestrator agent that’s smart enough to plan the work itself.

The trick is in MAF, an agent can be turned into a tool, and (from Sample 01) we know agents can call tools.

Key MAF Concept — AsAIFunction() : agent.AsAIFunction() turns an entire agent into a callable tool. So you can hand the Writer and Reviewer to another agent as its tools — and let that agent decide when to use each one.

// Turn each specialist agent into a tool:
AITool writerTool   = writer.AsAIFunction();
AITool reviewerTool = reviewer.AsAIFunction();
// The Orchestrator is itself an agent — and its "tools" are agents.
// The LLM decides when to draft, when to review, and when it's done.
AIAgent orchestrator = chatClient.AsAIAgent(
    instructions: """
        You produce a polished marketing tagline by delegating — never write one yourself.
        Steps you must follow:
          1. Call the Writer tool to create a first-draft tagline.
          2. Call the Reviewer tool to improve that draft.
          3. Reply with one line: Final: <the improved tagline>
        """,
    name: "Orchestrator",
    description: "Coordinates the Writer and Reviewer agents.",
    tools: [writerTool, reviewerTool]);

That’s the whole idea — but there’s one problem: when the orchestrator delegates, it happens inside the model, so you can’t see it. MAF lets us peek in with middleware:

Key MAF Concept — function-invocation middleware :

agent.AsBuilder().Use(...) wraps the agent so you can observe (or modify) every tool call. We use it to log each delegation — which also reassures you the model is working.

AIAgent orchestrator = chatClient.AsAIAgent( /* ...as above... */ )
    .AsBuilder()
    .Use(async (innerAgent, context, next, cancellationToken) =>
    {
        Console.WriteLine($"\n  [🔧 Orchestrator → {context.Function.Name}]");
        return await next(context, cancellationToken);
    })
    .Build();

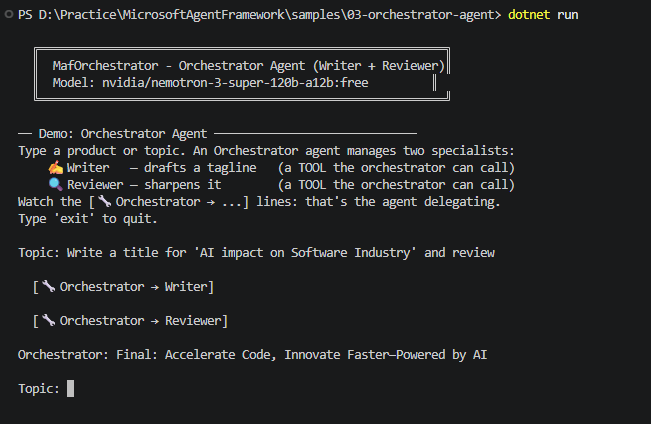

Now run it and you can watch the orchestrator think:

Sequential vs Orchestrator — when to use which

Both patterns coordinate the same two agents. The difference is who’s in charge of the flow.

Rule of thumb: if the steps are known and always the same, use a sequential workflow. If the path can vary and you want the agent to figure it out, reach for an orchestrator agent.

• Full source code on GitHub: MicrosoftAgentFrameworkDemo (samples/02-multi-agent-sequential, samples/03-orchestrator-agent)
• Official docs: Microsoft Agent Framework — MS Learn and Workflow Orchestrations
• Start here if you missed it: Getting Started with Microsoft Agent Framework – Build a C# AI Agent

🙂
