Canvas App | Power Fx | Parse and bind JSON collection to Gallery
In this article, I will demonstrate how to utilize the ParseJson function to parse JSON data and bind it to Gallery control.
Scenario:
- Create a JSON string that contains a collection of ‘Student’ objects, each with properties such as Name, Mobile, Email, and City.
- Read and Parse the JSON string into a collection.
- Bind the collection to Gallery control.
Let’s get started with JSON preparation and parsing, and then binding it to a Gallery.
Prepare a Sample JSON string:

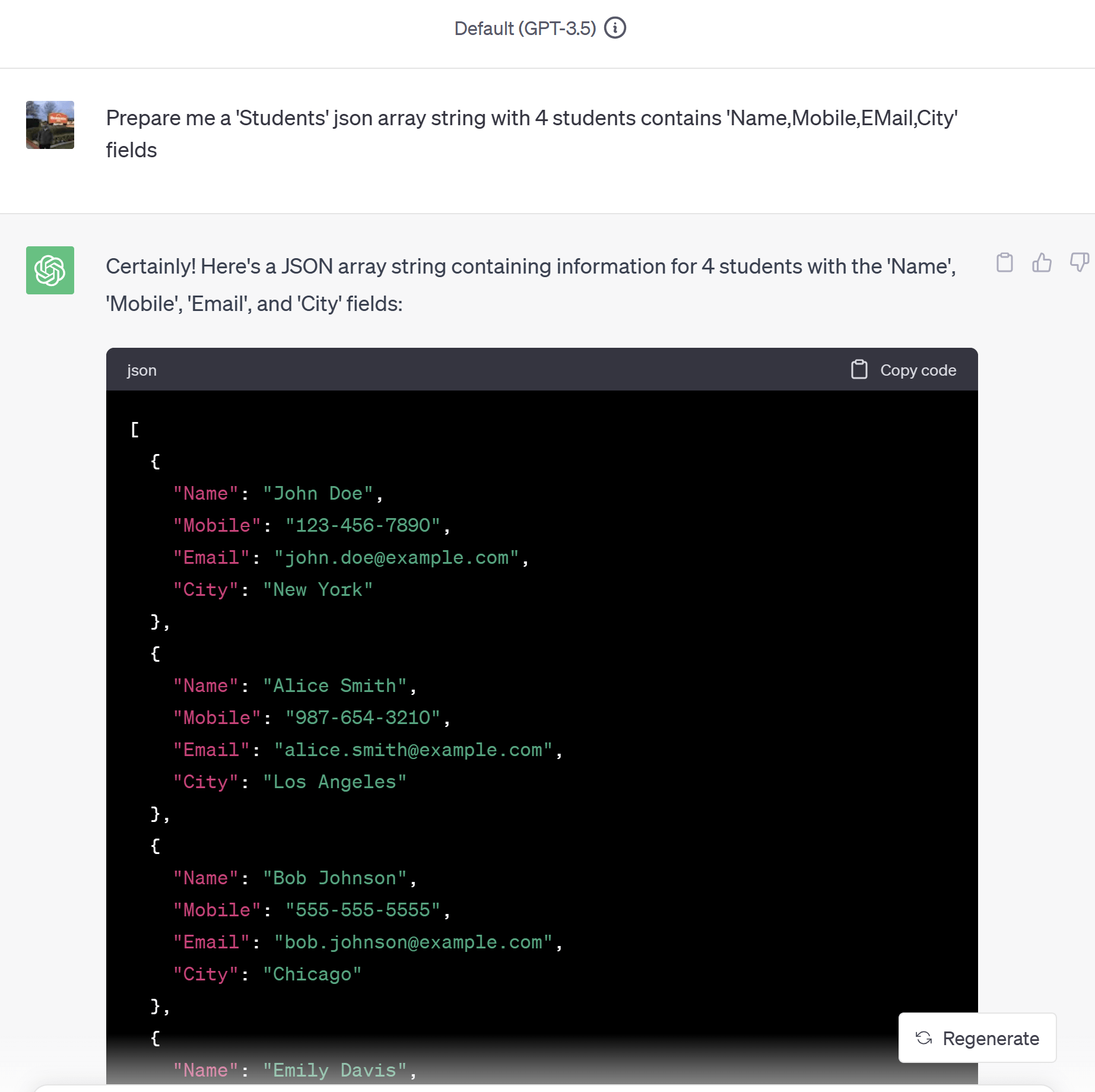

- I’ve asked ChatGpt to prepare a JSON string of Students and it instantly generated sample JSON.
- Alternately, you can also use ObjGen website to generate a sample JSON.
Use the ParseJson function to parse the Json string:
Now that we have the JSON string ready, let’s use ParseJson function to parse it into a collection.

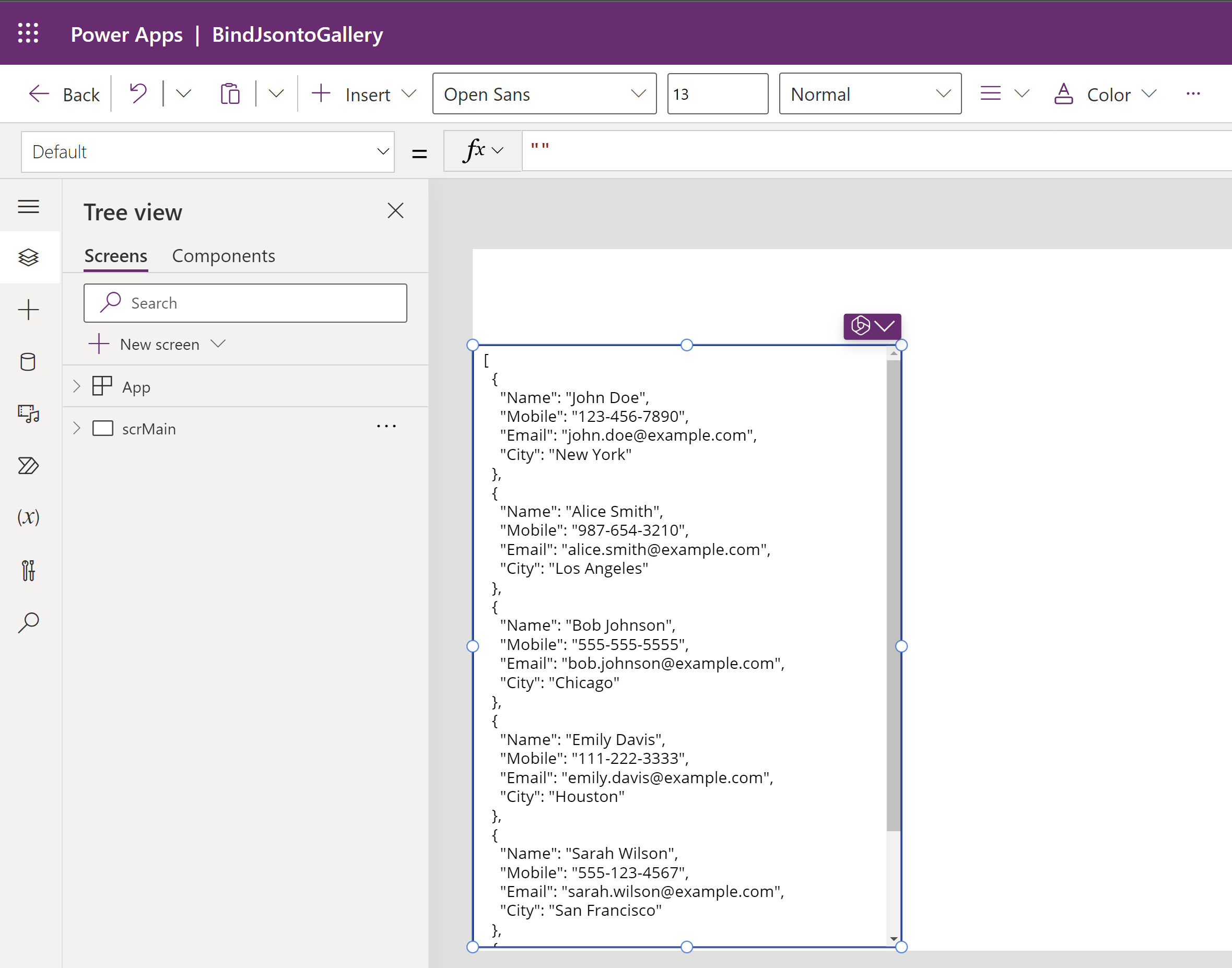

- Create a new Canvas App, add a Text control, and paste the JSON string prepared in the above section.
- I’ve named the Text control as ‘txtJsonInput‘.
- Let’s begin with a simple parse that provides the count of student records in the JSON string.

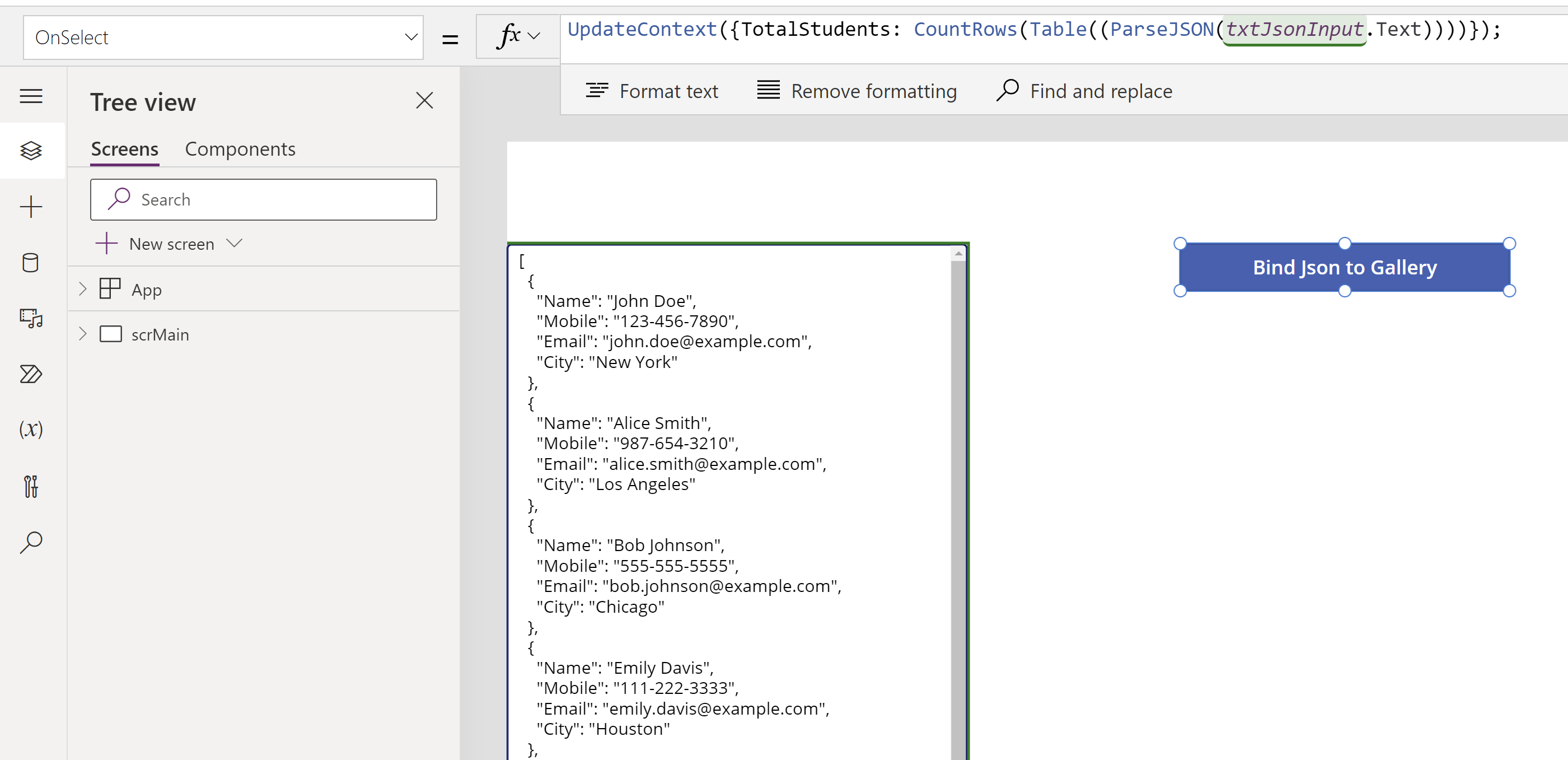

- Add a Button control and on OnSelect event, write the following formula.
UpdateContext({TotalStudents: CountRows(Table((ParseJSON(txtJsonInput.Text))))});
- To understand the formula above, note that the ParseJSON function parses a valid JSON string and returns an untyped object that represents the JSON structure.
- Since our JSON structure is a array of records, I am type casting it to the Table(i.e.,
Table((ParseJSON(txtJsonInput.Text))
) - Next, I am using
CountRows
function to retrieve the record count of the table. - Use the UpdateContext function to set the count of rows value to the TotalStudents variable.

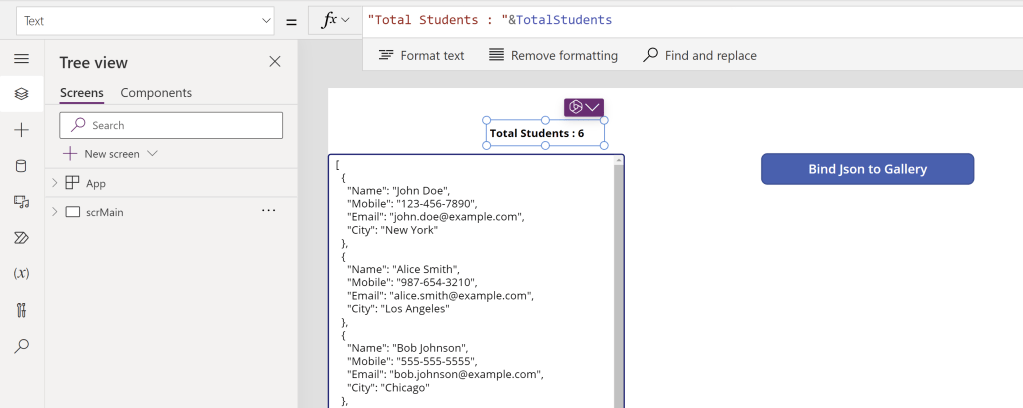

- Add a Label control to display the TotalStudents.
- My JSON string contains 6 students, so the TotalStudents variable is set to 6.
Bind the students to Gallery:
- Now that we’ve parsed and mapped the JSON collection to a table, let’s extend the formula to convert the table rows into a Collection and map them to a Gallery.

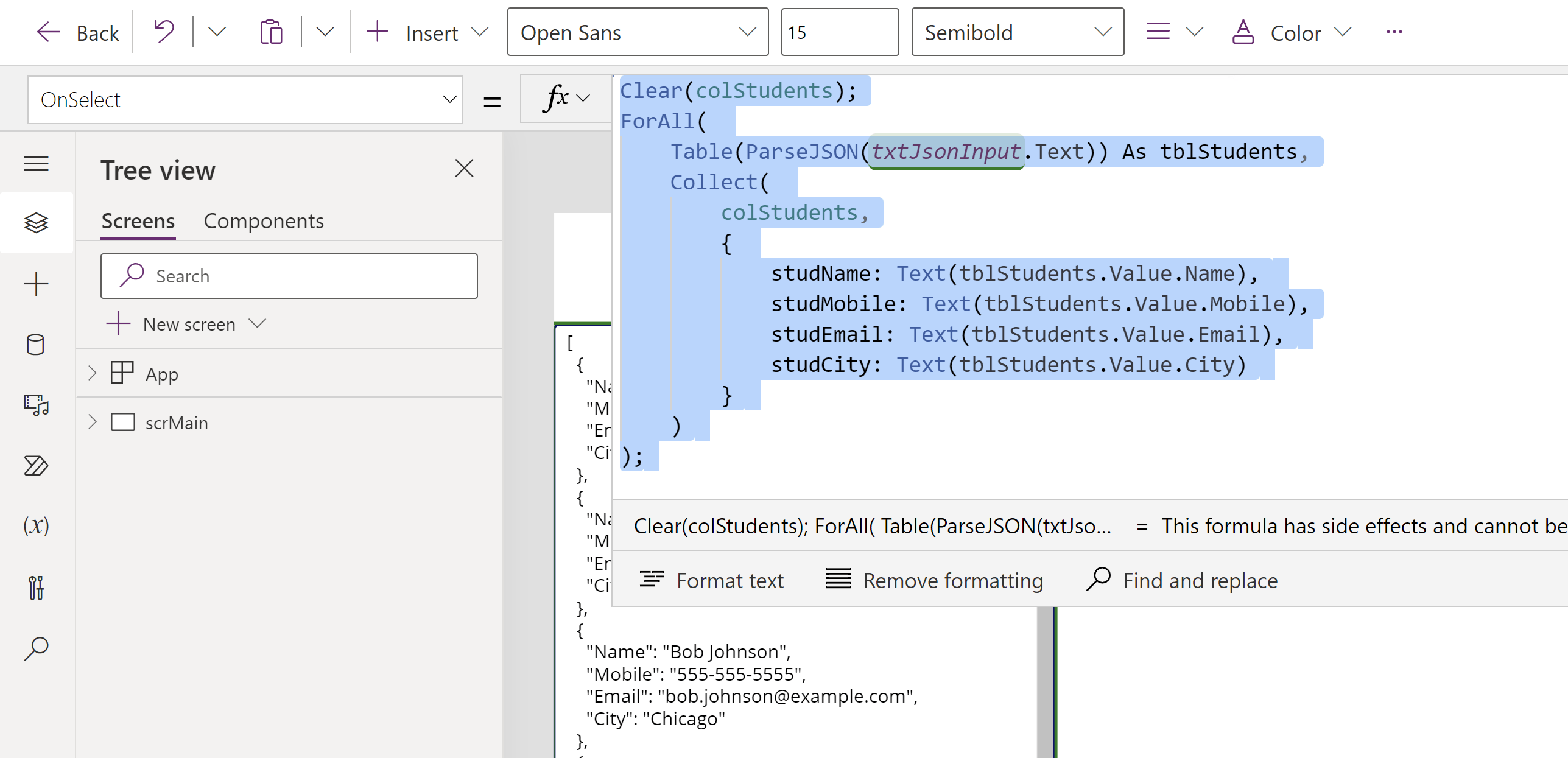

- Write the following formula to load the JSON collection to a PowerFx collection.
Clear(colStudents);
ForAll(
Table(ParseJSON(txtJsonInput.Text)) As tblStudents,
Collect(
colStudents,
{
studName: Text(tblStudents.Value.Name),
studMobile: Text(tblStudents.Value.Mobile),
studEmail: Text(tblStudents.Value.Email),
studCity: Text(tblStudents.Value.City)
}
)
);
- In the above formula, we are first parsing the JSON string in to Table (i.e.,
Table(ParseJSON(txtJsonInput.Text)) As tblStudents
). - Then using ForAll function to loop through each row in the Table and adding to
colStudents
. - We are also using
Clear(colStudents);
to clear the collection before loading fresh.

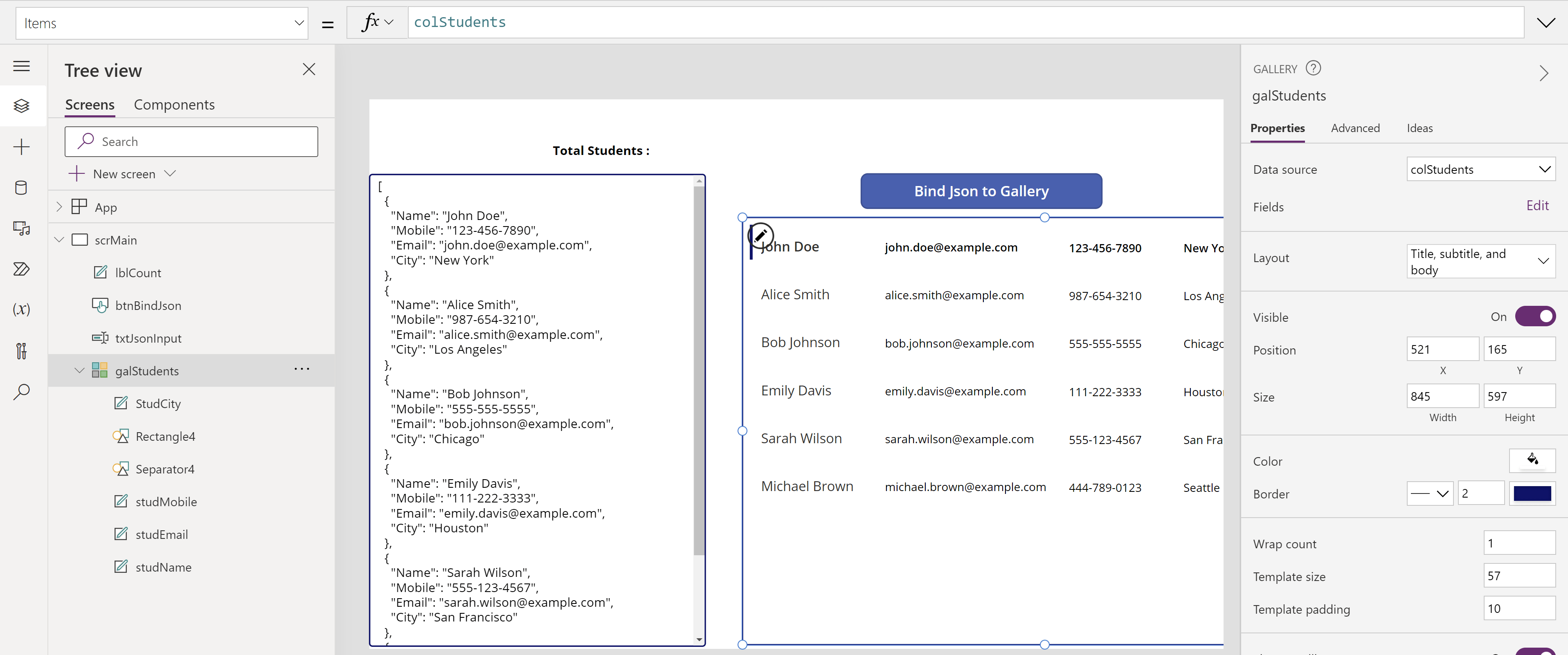

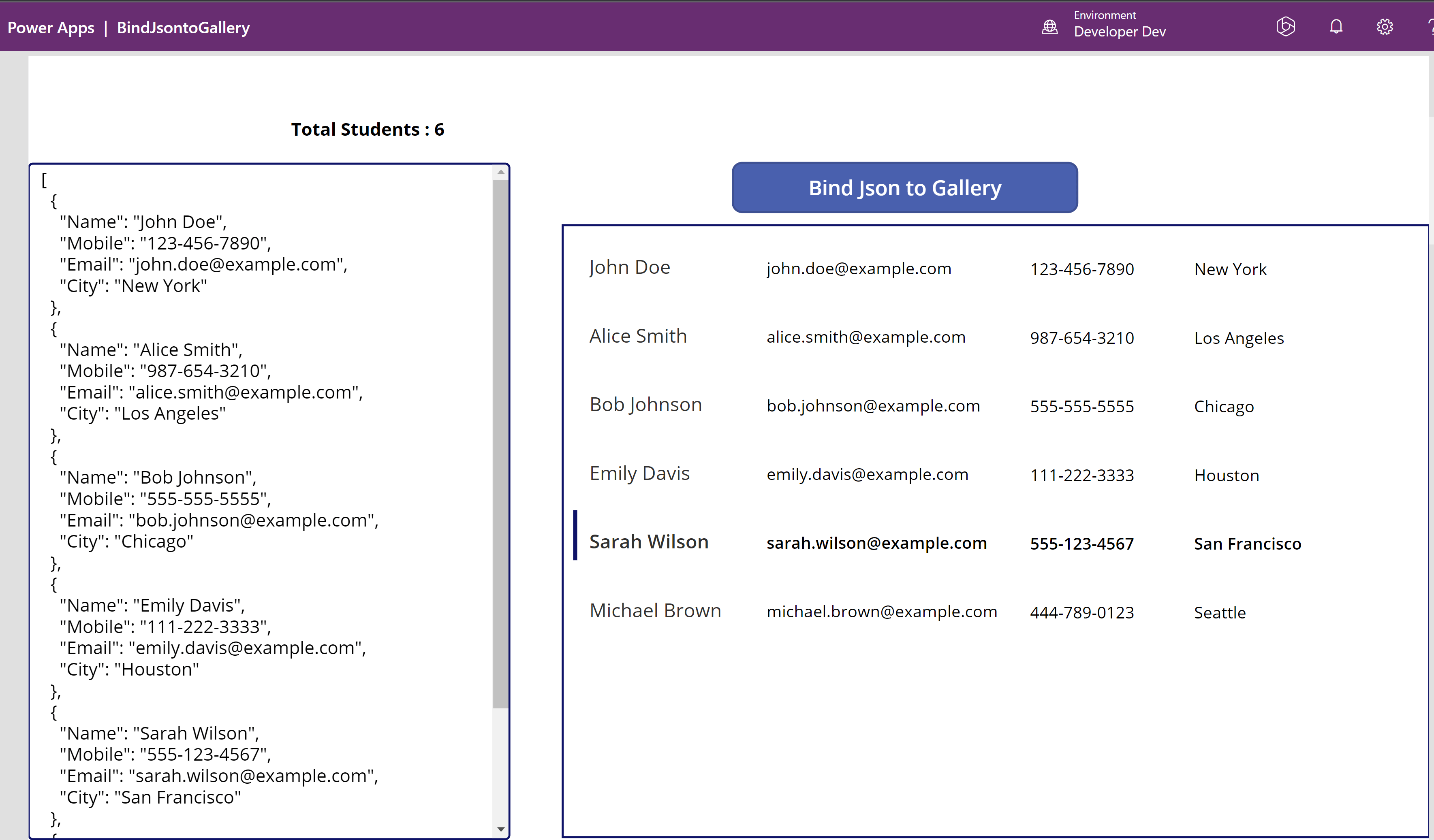

- That’s all that’s needed. Now add a Gallery control and set the ‘Data source’ as the
colStudents
collection.
🙂
