In this article, I am going to collate useful Syntaxes and Formulas frequently used in Cloud Flows with Dataverse connector.

Format DateTime:

When working with date and time values in flow, they may look like:

• 2019-12-06T22:47:23.0798367Z or 2009-06-15T13:45:30Z

You may format these values to look like:

• 6/15/2009 1:45 PM or Monday, June 15, 2009

This is done by using Date and Time Format Strings passed to the formatDateTime() function.

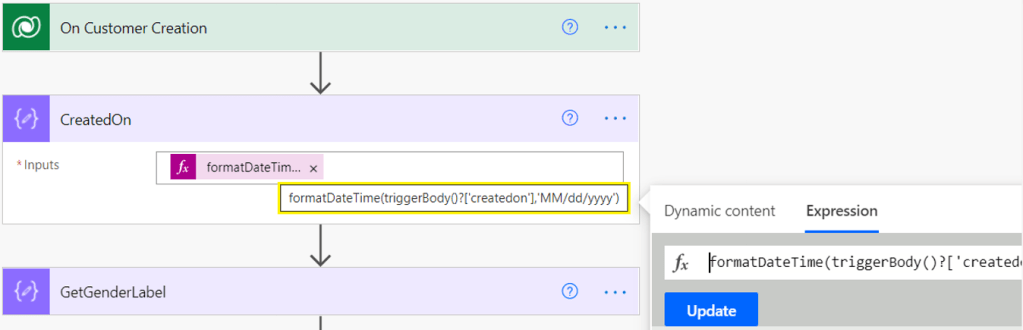

Example: Following is the formula to convert the ‘CreatedOn’ to ‘MM/dd/yyyy’ format.

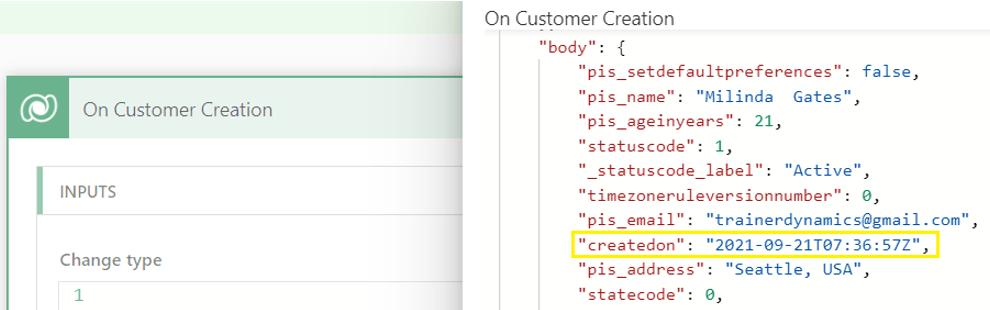

• ‘createdon’ has been retrieved from Flow’s ‘triggerBody()’.

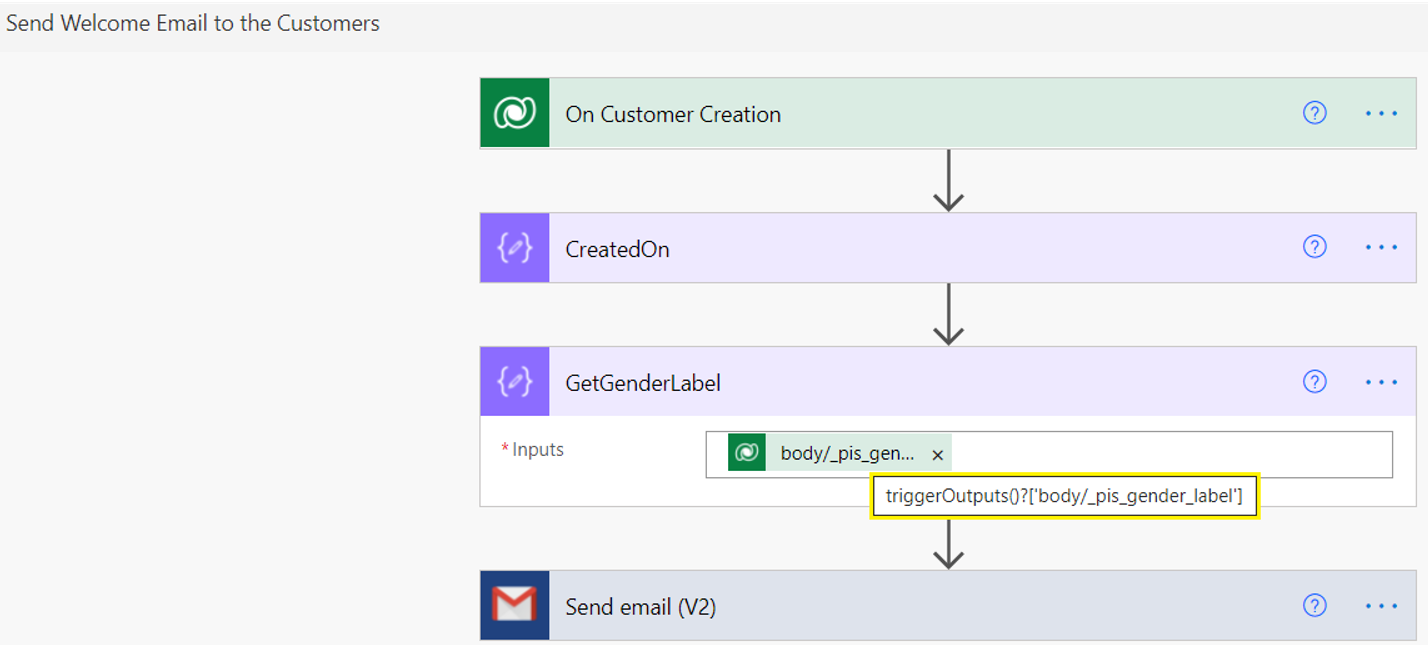

Get Optionset/Choice Label:

• By default, ‘Optionset/Choice’ field gives the Value not Label.
  • As an example, ‘Gender’ field (i.e., ‘pis_gender’) gives the ‘100000001’ not ‘Male’.

• To get the Label, read by _{field-schema-name}_label.

Set the Lookup value:

• To set Lookup field, in the Dataverse’s ‘Add a new row’ and ‘Update a row’ Actions, use following syntax.
  • Entity/TableName(UniqueId)

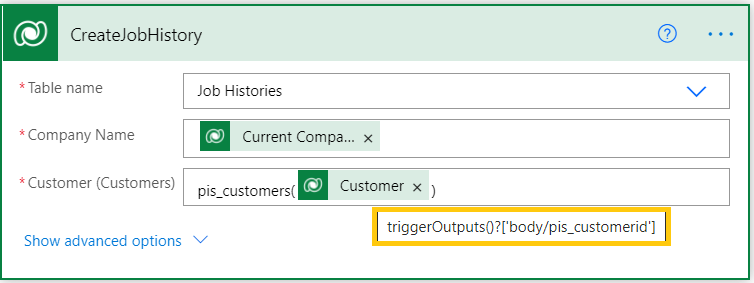

• In below example, ‘pis_customers’ is my table name and reading ‘Customer ID’ from TriggerOutputs body.
  • pis_customers(@{triggerOutputs()?[‘body/pis_customerid’]})

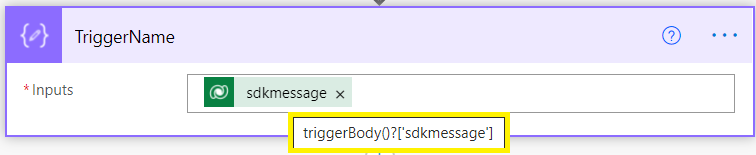

Read the Dataverse ‘Trigger Name’:

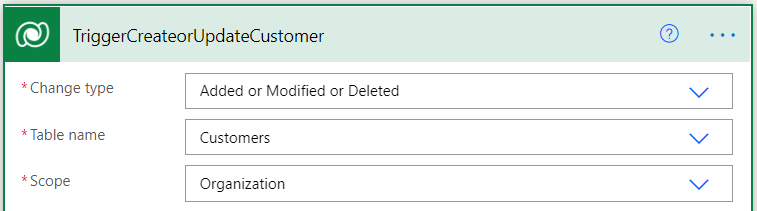

• If you have a Dataverse trigger with ‘Change type’ set as ‘Added or Modified or Deleted’.

• Following is the statement to read the ‘Message’ (i.e., Create or Update or Delete).
  • @{triggerBody()?[‘sdkmessage’]}

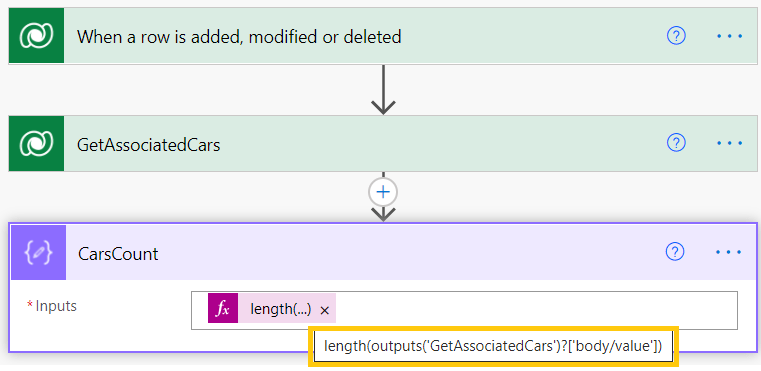

Get Length of the Rows:

• In my flow, I’ve a ‘List rows’ Action which retrieves the ‘Cars’ records.

• To get the Count of the records, following is the syntax:
  • @{length(outputs(‘GetAssociatedCars’)?[‘body/value’])}

🙂
