[Code Snippet] Set Business process flow (BPF) stage using C#

Assume you have a BPF with 3 Stages on an Entity ‘Employer’. When you create a new ‘Employer’ record, by default ‘Stage-1’ gets set.

What if you have to create the ‘Employer’ record with a different stage.

Lets see how to create a record and set the desired BPF stage with an example entity ‘Employer’.

I’ve an ‘Employer’ entity and a BPF name ‘Employer flow’ with 3 stages named ‘Basic Details’, ‘Address’ and ‘Experience’.

Key point to notice is, when ever you create a BPF a new entity gets created with the given BPF name.

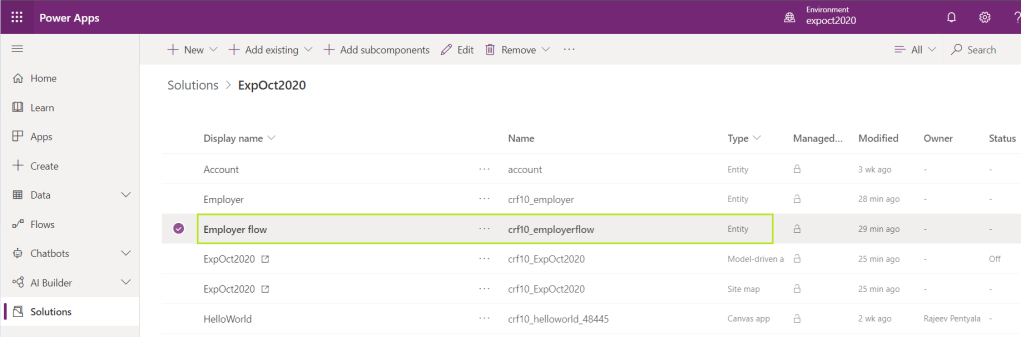

‘Employer flow’ is BPF Entity

Following are the steps to create a ‘Employer’ record and set the BPF stage to ‘Experience’.

  • Query ‘Workflow’ entity to get the ‘BPF ID’ by passing the BPF entity schema name (i.e., crf10_employerflow).
var queryEmployerBPF = new QueryExpression
                {
                    EntityName = "workflow",
                    ColumnSet = new ColumnSet(true),
                    Criteria = new FilterExpression
                    {
                        Conditions =
                        {
                            new ConditionExpression
                            {
                                AttributeName = "uniquename",
                                Operator = ConditionOperator.Equal,
                                Values = { "crf10_employerflow" }
                            }
                        }
                    }
                };
                var retrievedBPF = ConnectionManager.CrmService.RetrieveMultiple(queryEmployerBPF).Entities[0];
                var _bpfId = retrievedBPF.Id;
  • Query Process Stage by passing ‘BPF ID’ fetched in previous step.
var queryPS = new QueryExpression{
EntityName = "processstage",
ColumnSet = new ColumnSet(true),
Criteria = new FilterExpression{
Conditions ={
new ConditionExpression{
AttributeName = "processid",
Operator = ConditionOperator.Equal,
Values={ _bpfId }
}
}
}
};

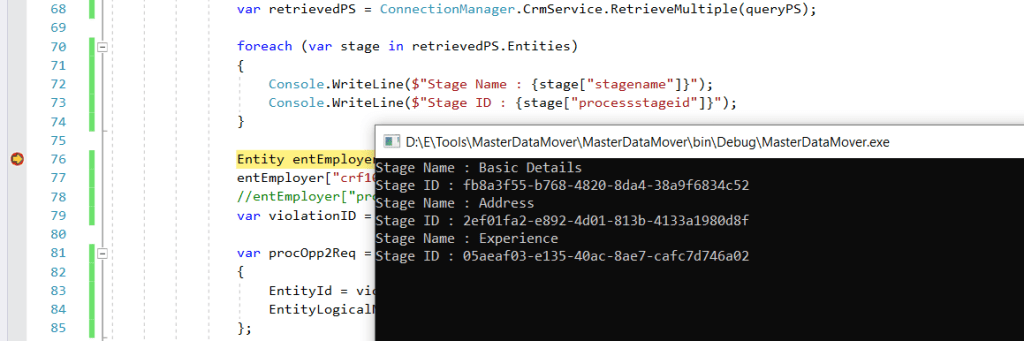

  • Copy the ‘Stage’ GUID’s which will be used in next steps.
  • Create the ‘Employer’ record, which also creates record in ‘BPF entity’ (i.e., Employer Flow).
            Entity entEmployer = new Entity("crf10_employer");
            entEmployer["crf10_name"] = "BPF Test";
            //entEmployer["processid"] = Guid.Empty;
            var violationID = ConnectionManager.CrmService.Create(entEmployer);
  • Fetch the ‘BPF entity’ (i.e., Employer Flow) record, which auto created in previous step, using ‘RetrieveProcessInstancesRequest’ request.
                var procOpp2Req = new RetrieveProcessInstancesRequest
                {
                    EntityId = violationID,
                    EntityLogicalName = "crf10_employer"
                };

                var procOpp2Resp = (RetrieveProcessInstancesResponse)ConnectionManager.CrmService.Execute(procOpp2Req);

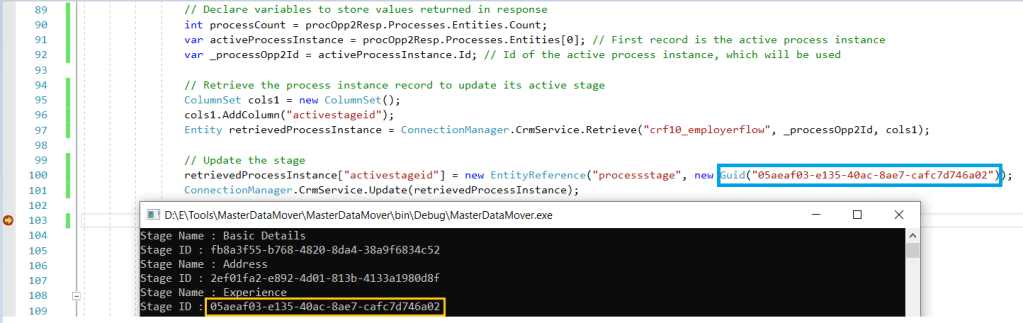

  • Update ‘activestageid’ field of the ‘BPF entity’ (i.e., Employer Flow) record fetched in previous step, with the desired stage GUID captured in Step #2.
// Declare variables to store values returned in response
                int processCount = procOpp2Resp.Processes.Entities.Count;
                var activeProcessInstance = procOpp2Resp.Processes.Entities[0]; // First record is the active process instance
                var _processOpp2Id = activeProcessInstance.Id; // Id of the active process instance, which will be used

                // Retrieve the process instance record to update its active stage
                ColumnSet cols1 = new ColumnSet();
                cols1.AddColumn("activestageid");
                Entity retrievedProcessInstance = ConnectionManager.CrmService.Retrieve("crf10_employerflow", _processOpp2Id, cols1);

                // Update the stage to 'Experience' by passing GUID (i.e.,"05aeaf03-e135-40ac-8ae7-cafc7d746a02")
                retrievedProcessInstance["activestageid"] = new EntityReference("processstage", new Guid("05aeaf03-e135-40ac-8ae7-cafc7d746a02"));
                ConnectionManager.CrmService.Update(retrievedProcessInstance);
  • Open the record from the App and the stage should set to ‘Experience’.
‘BPF Test’ record’s stage set to ‘Experience’

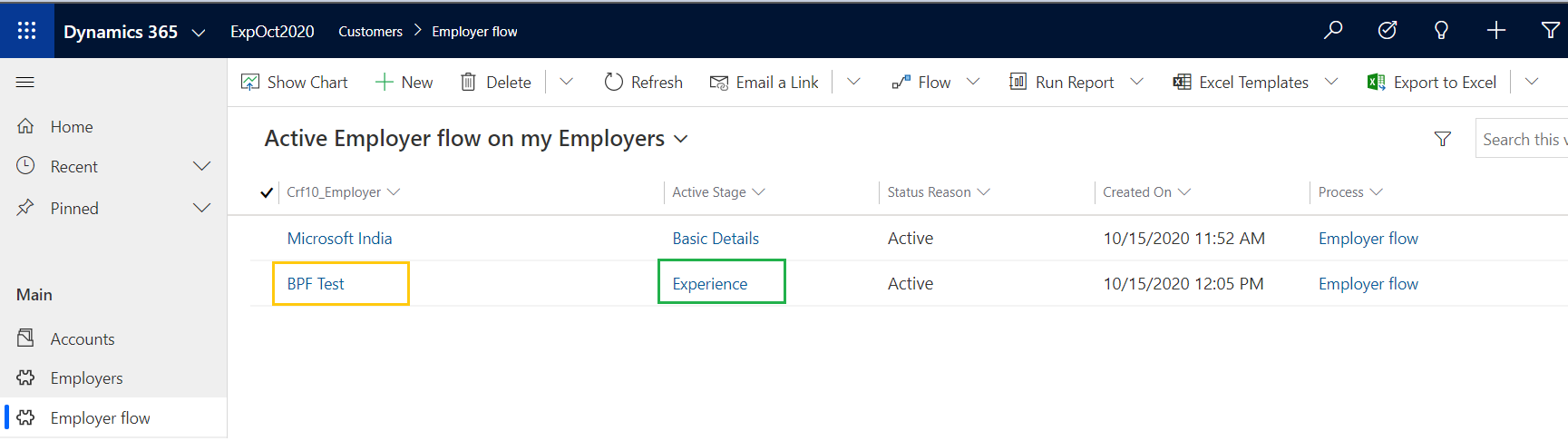

  • Check the BPF records and you should see ‘Active Stage’ got set to ‘Experience’ (This is optional step and for your learning).
  • Below is the complete snippet.
                var queryEmployerBPF = new QueryExpression
                {
                    EntityName = "workflow",
                    ColumnSet = new ColumnSet(true),
                    Criteria = new FilterExpression
                    {
                        Conditions =
                        {
                            new ConditionExpression
                            {
                                AttributeName = "uniquename",
                                Operator = ConditionOperator.Equal,
                                Values = { "crf10_employerflow" }
                            }
                        }
                    }
                };
                var retrievedBPF = ConnectionManager.CrmService.RetrieveMultiple(queryEmployerBPF).Entities[0];
                var _bpfId = retrievedBPF.Id;

                var queryPS = new QueryExpression
                {
                    EntityName = "processstage",
                    ColumnSet = new ColumnSet(true),
                    Criteria = new FilterExpression
                    {
                        Conditions =
                        {
                            new ConditionExpression
                            {
                                AttributeName = "processid",
                                Operator = ConditionOperator.Equal,
                                Values={ _bpfId }
                            }
                        }
                    }
                };
                var retrievedPS = ConnectionManager.CrmService.RetrieveMultiple(queryPS);
// Copy the Stage GUID's using below loop.
                foreach (var stage in retrievedPS.Entities)
                {
                    Console.WriteLine($"Stage Name : {stage["stagename"]}");
                    Console.WriteLine($"Stage ID : {stage["processstageid"]}");
                }
//Create 'Employer' record
                var entEmployer = new Entity("crf10_employer");
                entEmployer["crf10_name"] = "BPF Test";
                //entEmployer["processid"] = Guid.Empty;
                var violationID = ConnectionManager.CrmService.Create(entEmployer);

                var procOpp2Req = new RetrieveProcessInstancesRequest
                {
                    EntityId = violationID,
                    EntityLogicalName = "crf10_employer"
                };

                var procOpp2Resp = (RetrieveProcessInstancesResponse)ConnectionManager.CrmService.Execute(procOpp2Req);

                // Declare variables to store values returned in response
                int processCount = procOpp2Resp.Processes.Entities.Count;
                var activeProcessInstance = procOpp2Resp.Processes.Entities[0]; // First record is the active process instance
                var _processOpp2Id = activeProcessInstance.Id; // Id of the active process instance, which will be used

                // Retrieve the process instance record to update its active stage
                var cols1 = new ColumnSet();
                cols1.AddColumn("activestageid");
                var retrievedProcessInstance = ConnectionManager.CrmService.Retrieve("crf10_employerflow", _processOpp2Id, cols1);

                // Update the stage to 'Experience' by passing GUID (i.e.,"05aeaf03-e135-40ac-8ae7-cafc7d746a02")
                retrievedProcessInstance["activestageid"] = new EntityReference("processstage", new Guid("05aeaf03-e135-40ac-8ae7-cafc7d746a02"));
                ConnectionManager.CrmService.Update(retrievedProcessInstance);

🙂

Advertisement
Categories: CRM Tags: , , ,
  1. sidda
    September 17, 2021 at 5:11 PM

    Could you please let us know on which step do i need to register this step

    • September 17, 2021 at 6:03 PM

      This is apt for migration scenario. Code needs to be triggered from C# Console.
