Assume you have composite XML and you want read the XML field values in your C# project, the simplest way is to convert in to Strongly type object and read as parameters.

It involves two steps as mentioned below

Generate XML Wrapper Class

• “Fruits.xml” is your XML file.

Composite XML

• Copy the XML file content.
• Open a new Class file “FruitsWrapper.cs” in Visual Studio 2012

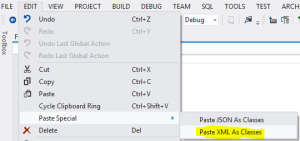

• Select “EDIT -> Paste Special -> Paste XML As Classes”

Paste Special XML As Class

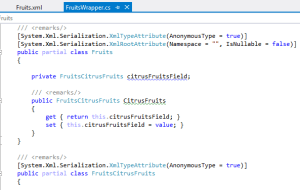

• Now you get XML wrapper class on your Class file

Generated XML Wrapper Class

• Save the file

Convert XML to Class

• To test the Conversion and read the XML data
• Take a console application and paste below code

static void Main(string[] args){

const string fruitsXmlPath = @”c:\Fruits.xml”;

// Set your Root Element Name (i.e., <Fruits> is the root node of our XML)

var xRoot = new XmlRootAttribute { ElementName = “Fruits”, IsNullable = true };

var xmlSerializer = new XmlSerializer(typeof(Fruits), xRoot);

var fruits = (Fruits)xmlSerializer.Deserialize(new FileStream(fruitsXmlPath, FileMode.Open));

// Read XML node values as Object Properties

Console.WriteLine(“Fruit Name” + fruits.CitrusFruits.Fruit.Name);

Console.WriteLine(“Fruit Price” + fruits.CitrusFruits.Fruit.Price);

}

This approach is useful when you have your application’s configuration details provided in an XML file and if the file is complex and big.

Note – If you don’t have “Paste Special -> Paste XML As Classes” feature in your Visual Studio, you can use XSD.exe tool to generate wrapper class from XML.
