Pass Parameters to HTML Web Resources in Model Driven Apps

In this article, I will show you how to create a simple HTML web resource that accepts parameters and host it inside a Model-Driven App.

We will use the $webresource directive in the navigation to pass a data parameter to the HTML page.

Why Pass Parameters to Web Resources?

Sometimes you need your HTML web resource to behave differently based on context.
For example, you might want to pass a deep-link path, a target role, or configuration values.
The $webresource directive with the ?data= query parameter makes this possible right from the SiteMap navigation.

Create the HTML Web Resource

Let’s start by creating a simple HTML file that reads the data parameter from the URL.

Here’s the complete HTML file I used for this demo:


<!DOCTYPE html>
<html lang="en-us">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Sample Web Resource - Parameter Demo</title>
    <style>
        body {
            font-family: 'Segoe UI', Tahoma, Arial, sans-serif;
            background-color: #f0f4f8;
            margin: 0;
            padding: 30px;
            color: #333;
        }
        .container {
            max-width: 700px;
            margin: 0 auto;
            background: #fff;
            border-radius: 8px;
            box-shadow: 0 2px 12px rgba(0, 0, 0, 0.08);
            padding: 30px;
        }
        h1 { font-size: 22px; margin-top: 0; color: #0078d4; }
        .param-section {
            margin-top: 20px;
            padding: 16px;
            background-color: #f9fbfd;
            border-left: 4px solid #0078d4;
            border-radius: 4px;
        }
        .param-label {
            font-weight: 600; color: #555;
            font-size: 13px; text-transform: uppercase;
        }
        .param-value { font-size: 18px; margin-top: 6px; color: #111; }
        table { width: 100%; border-collapse: collapse; margin-top: 20px; }
        th, td { padding: 10px 14px; text-align: left; border: 1px solid #e0e0e0; }
        th { background-color: #0078d4; color: #fff; font-weight: 600; }
        .no-params { color: #888; font-style: italic; margin-top: 20px; }
        .usage-note {
            margin-top: 24px; padding: 12px;
            background: #fff8e1; border-radius: 4px;
            font-size: 13px; color: #6d5b00;
        }
        code { background: #eef2f7; padding: 2px 6px; border-radius: 3px; font-size: 13px; }
    </style>
</head>
<body>
    <div class="container">
        <h1>📦 Web Resource - Parameter Demo</h1>
        <p>This web resource reads parameters passed via the <code>$webresource</code> directive in the SiteMap navigation.</p>
        <div id="output"></div>
        <div class="usage-note">
            <strong>Usage:</strong> <code>$webresource:raj_samplehtml?data=helloworldparam</code>
        </div>
    </div>
    <script>
        document.addEventListener('DOMContentLoaded', function () {
            var outputEl = document.getElementById('output');
            var params = new URLSearchParams(window.location.search);
            var dataParam = decodeURIComponent(params.get("data") || "");
            if (!dataParam && params.toString() === "") {
                outputEl.innerHTML = '<p class="no-params">No parameters were passed to this page.</p>';
                return;
            }
            var html = "";
            if (dataParam) {
                html += '<div class="param-section">';
                html += '<div class="param-label">Data Parameter</div>';
                html += '<div class="param-value">' + escapeHtml(dataParam) + '</div>';
                html += '</div>';
            }
            var allParams = [];
            params.forEach(function (value, key) {
                allParams.push({ key: key, value: decodeURIComponent(value) });
            });
            if (allParams.length > 0) {
                html += '<table>';
                html += '<thead><tr><th>Parameter</th><th>Value</th></tr></thead>';
                html += '<tbody>';
                allParams.forEach(function (p) {
                    html += '<tr><td>' + escapeHtml(p.key) + '</td><td>' + escapeHtml(p.value) + '</td></tr>';
                });
                html += '</tbody></table>';
            }
            outputEl.innerHTML = html;
        });
        function escapeHtml(text) {
            var div = document.createElement('div');
            div.textContent = text;
            return div.innerHTML;
        }
    </script>
</body>
</html>



The key pattern in the above code is:


var params = new URLSearchParams(window.location.search);
var dataParam = decodeURIComponent(params.get("data") || "");

This uses the standard URLSearchParams API to extract the data query parameter, then decodes it using decodeURIComponent.

Now let’s upload this HTML file as a web resource in our Dataverse environment.

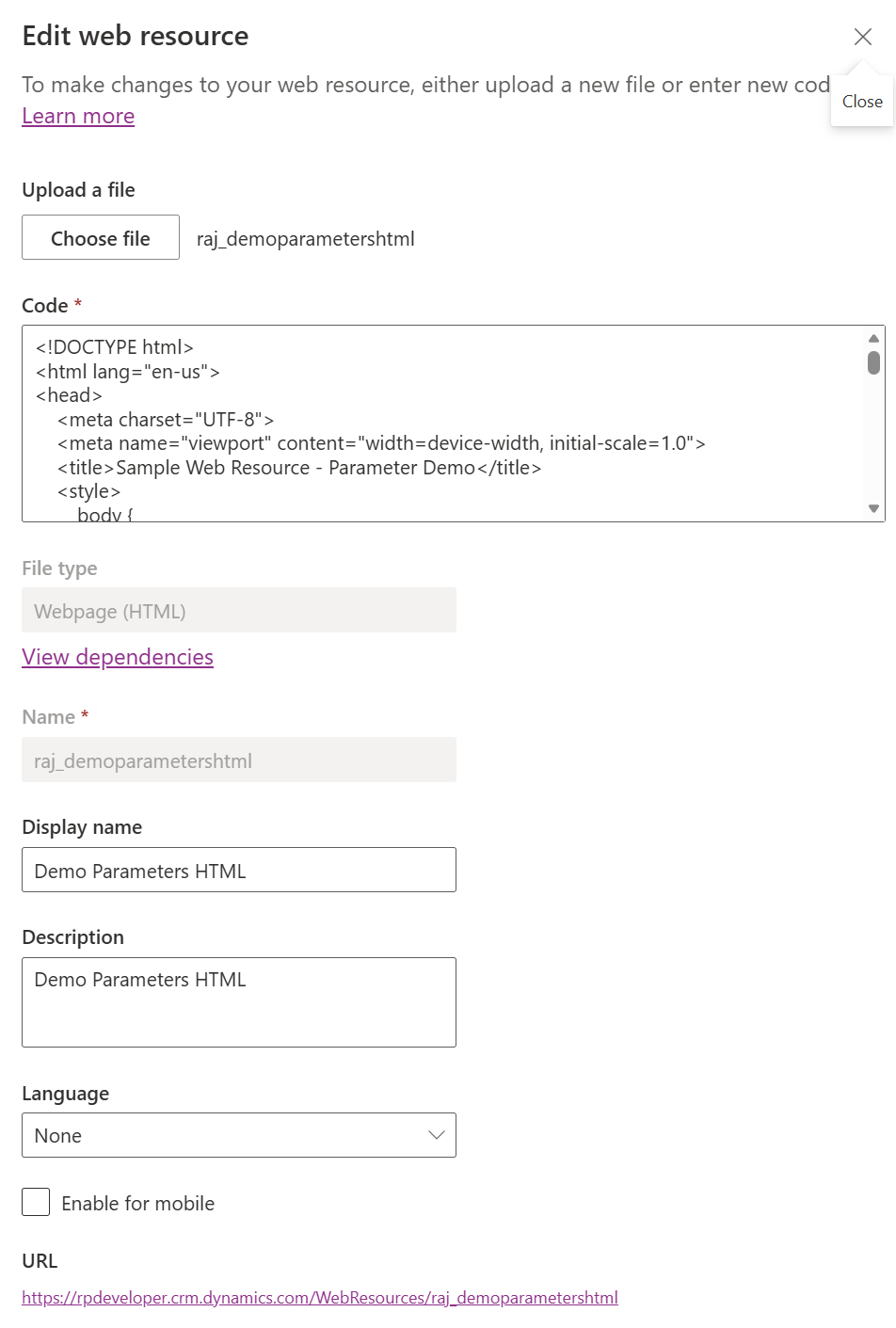

Upload the Web Resource to Dataverse

Navigate to your Power Apps environment and go to Solutions
Open your solution and click New > More > Web resource
Upload the HTML file
Set the Name (e.g., raj_demoparametershtml)
Set the Display name (e.g., Demo Parameters HTML)
File type will automatically be set to Webpage (HTML)
Click Save and then Publish

Now that our web resource is created and published, let’s add it to a Model-Driven App.

Add the Web Resource to a Model-Driven App

Create a new or open your Model-Driven App in the App Designer

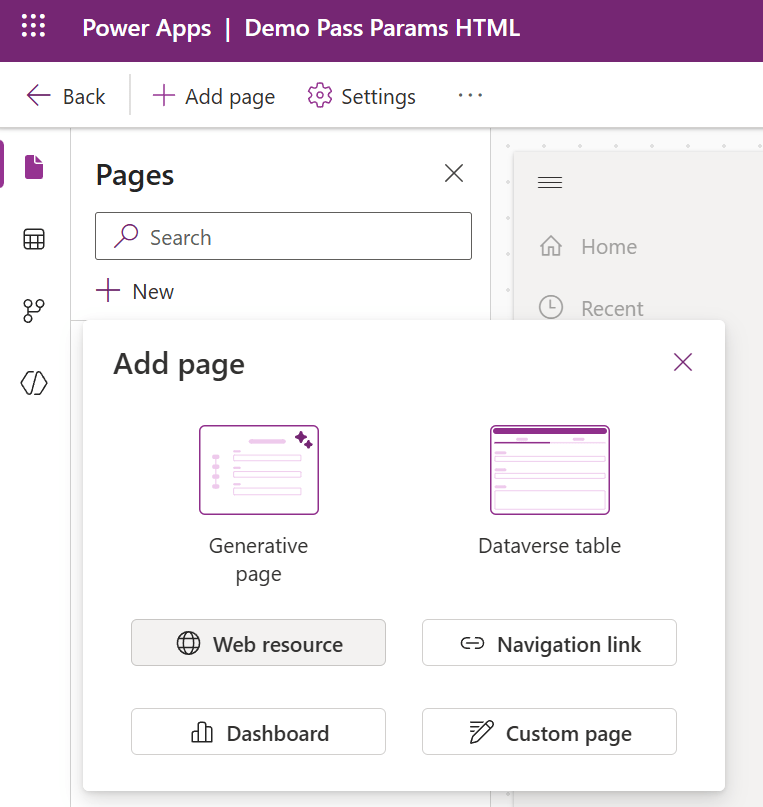

Click + Add page
Select Web resource from the page type options

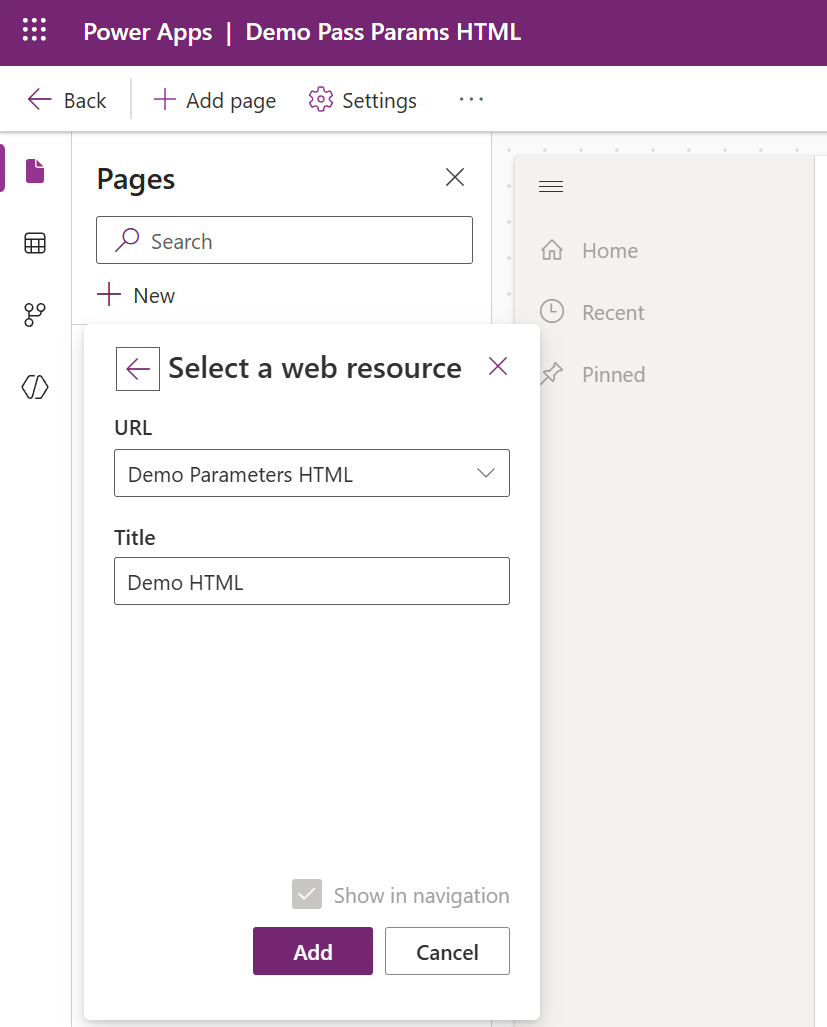

In the URL dropdown, select your web resource (Demo Parameters HTML)
Give it a Title (e.g., Demo HTML)
Click Add

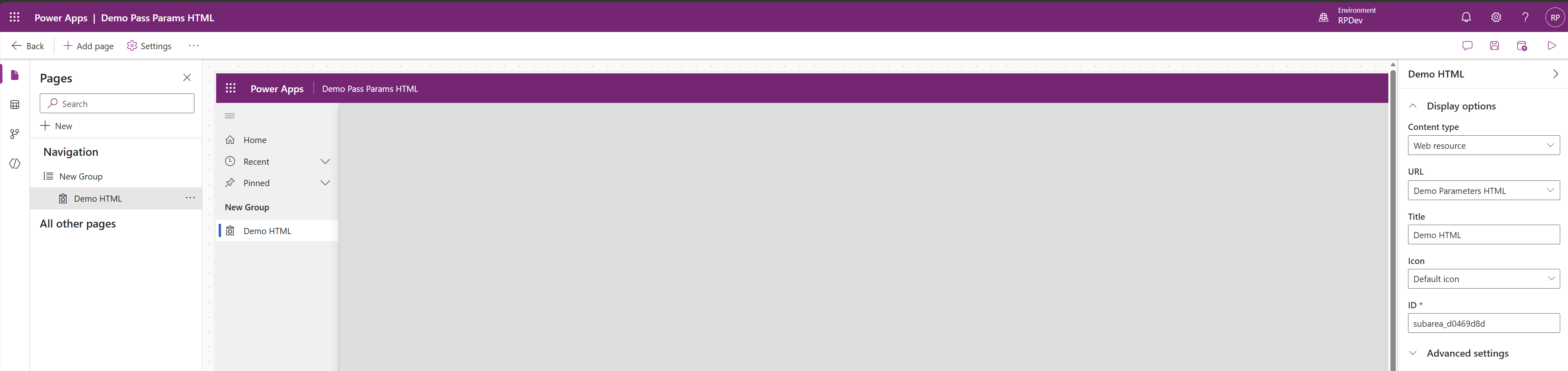

The web resource page now appears in the navigation panel on the left.

Now comes the important part — let’s configure the URL to pass the data parameter.

Set the $webresource URL with the Data Parameter

This is where we use the $webresource directive to pass parameters.

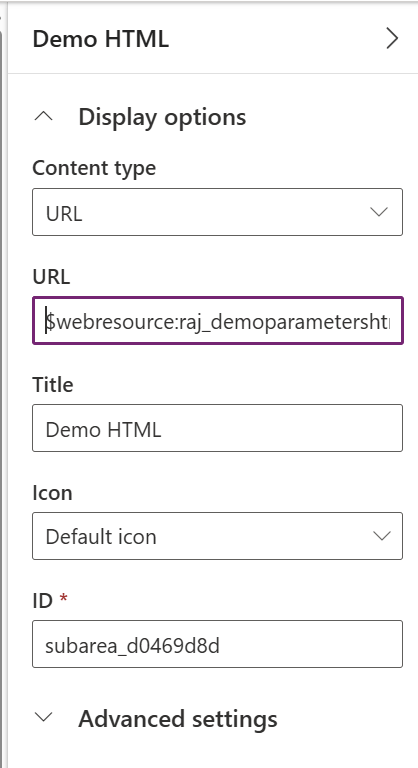

Select the web resource page in the navigation (left panel)
In the Display options panel on the right, change the Content type to URL
In the URL field, enter the $webresource directive with the data parameter:
- Replace ‘raj_demoparametershtml‘ with your HTML web resource name.

$webresource:raj_demoparametershtml?data=helloworldparam

Setting	Value
Content type	URL
URL	`$webresource:raj_demoparametershtml?data=helloworldparam`
Title	Demo HTML

Click Save and Publish the app

Let’s play the app and see the result.

Play the App and Verify

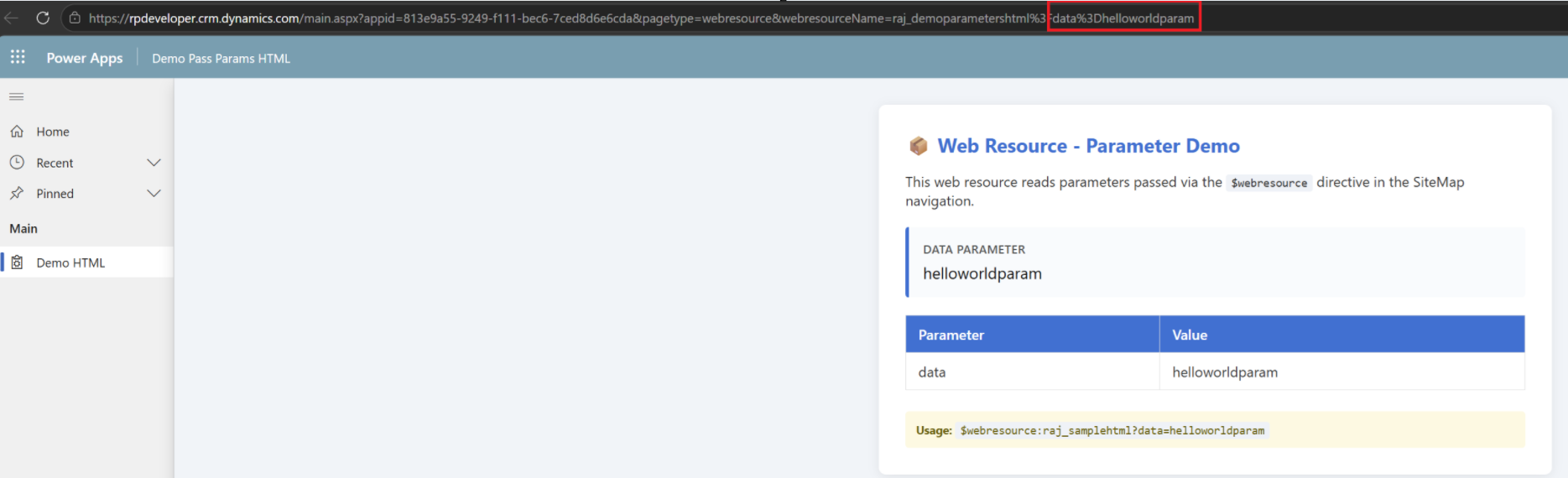

Click Play to launch the Model-Driven App
Click on Demo HTML in the left navigation
The HTML web resource loads and displays the parameter value helloworldparam

Notice in the browser URL bar — you can see the data=helloworldparam being passed as a query parameter to the web resource. The HTML page successfully reads and displays it.

Passing Multiple Parameters

You can also pass multiple values encoded within the data parameter. For example:


$webresource:raj_demoparametershtml?data=first%3DFirst%20Value%26second%3DSecond%20Value

This encodes first=First Value&second=Second Value inside the data parameter. Your HTML page can then decode and parse these sub-parameters.

You can also pass additional query parameters alongside data:

$webresource:raj_demoparametershtml?data=%2Fmy-deeplink&target=admin

🙂
