In this article, let’s explore how to use a Power Apps Code App to connect and chat with a Microsoft Copilot Studio agent — directly from a React-based custom UI, with multi-turn conversation support.

If you haven’t used Code Apps before, check out the official docs  Power Apps Code Apps Overview

What This POC Does

This proof-of-concept demonstrates:

• Connecting a Code App to a published Copilot Studio agent via the shared_microsoftcopilotstudio connector
• A chat UI built in React (no external UI library) with user and agent message bubbles
• Multi-turn conversations — the agent remembers context across messages using conversationId
• A Debug panel to inspect the raw API response from the agent
• All configuration driven via a .env file (agent name, notification URL)

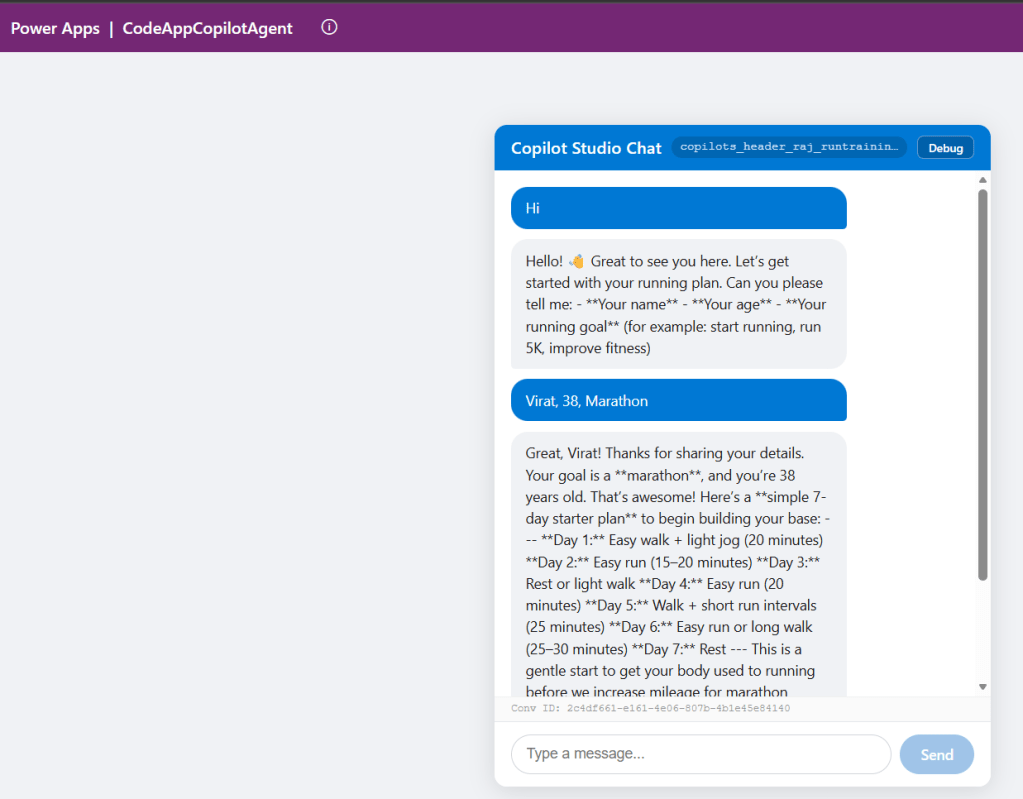

Here is a screenshot of the working POC

Key Setup Steps:

• Create a Microsoft Copilot Studio connection

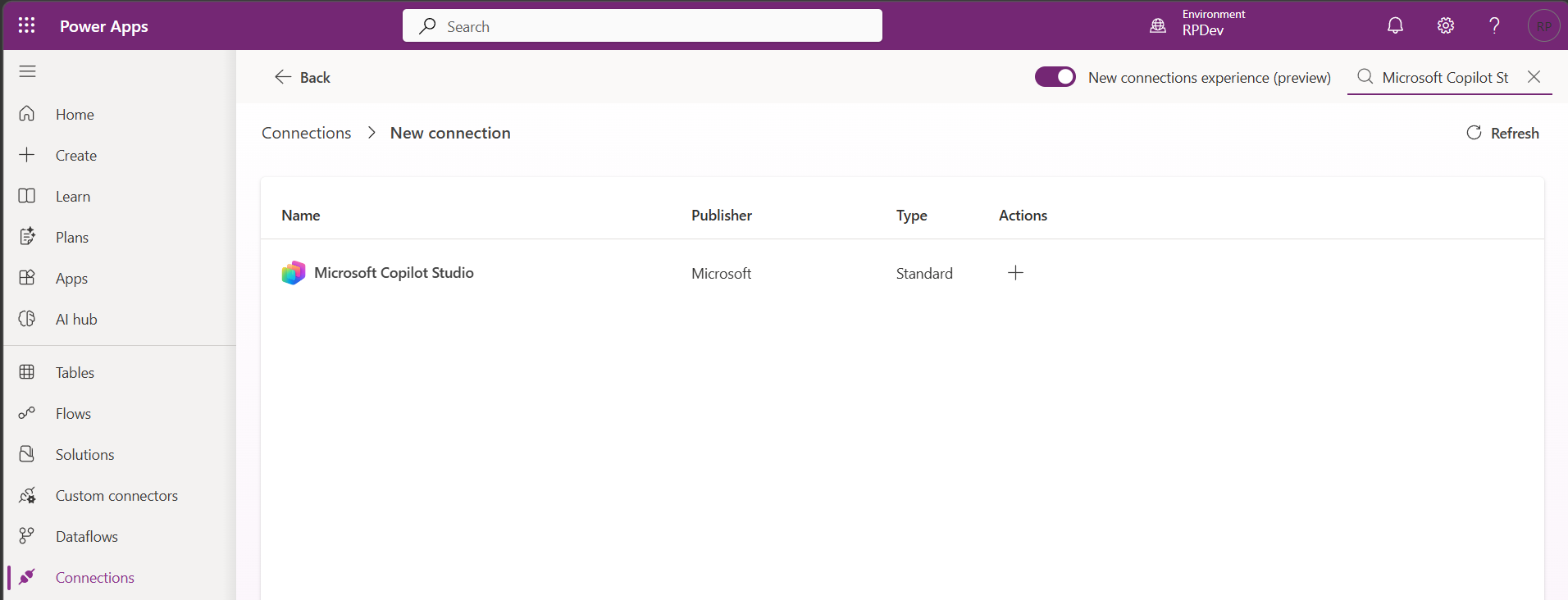

  • Set up a new connection for the Microsoft Copilot Studio connector in your Power Platform environment.

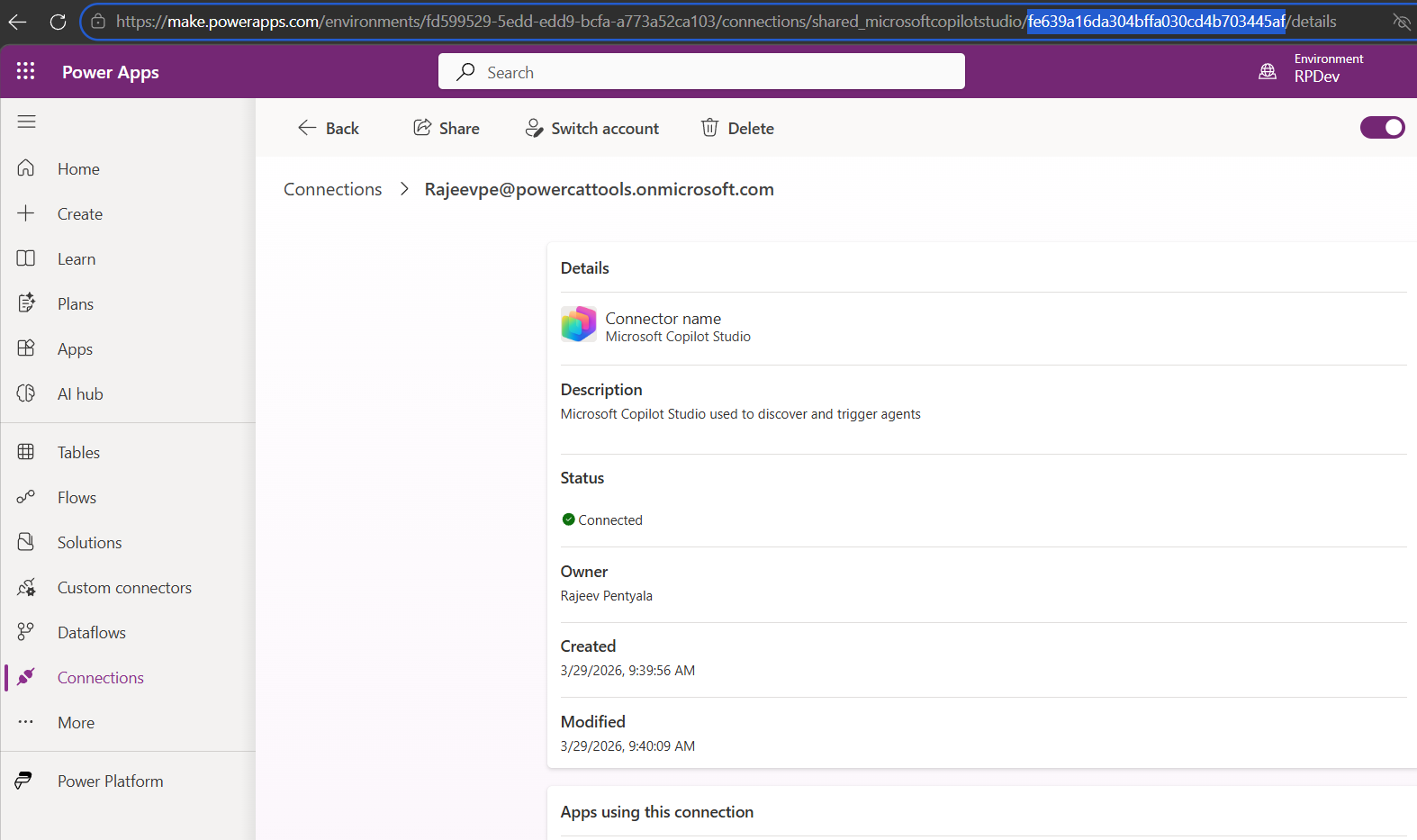

• Open the connection and copy the connection ID from the browser URL.

• Add the Microsoft Copilot Studio connection as a data source

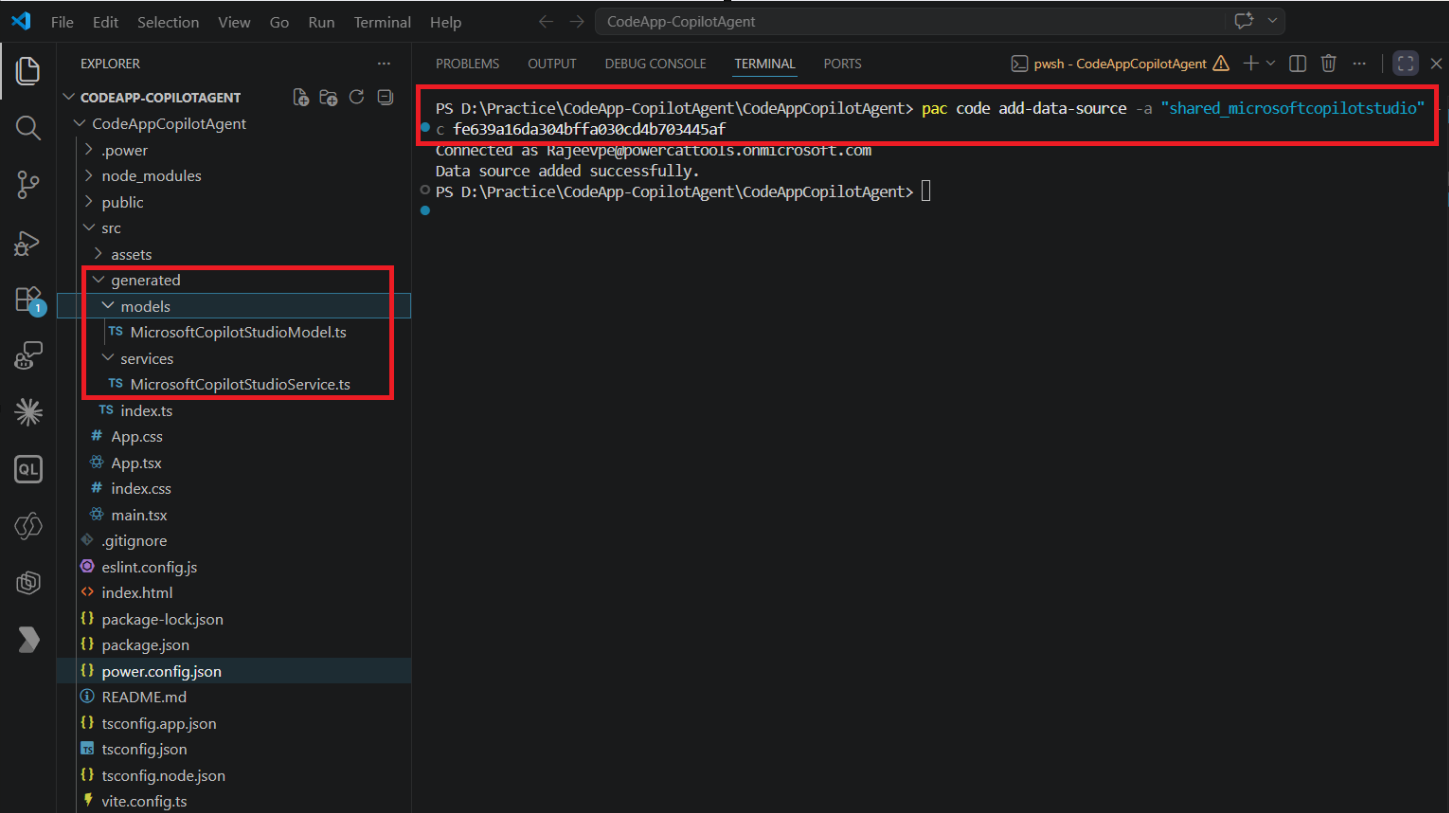

  • Run the following command to wire it up to your Code App:

pac code add-data-source -a "shared_microsoftcopilotstudio" -c <connectionId>

• This auto-generates two important files.
  • src/generated/services/MicrosoftCopilotStudioService.ts — all connector operations as typed static methods
  • src/generated/models/MicrosoftCopilotStudioModel.ts — TypeScript response interfaces

• Publish your Copilot Studio Agent
  • Make sure the agent is in Published state before testing.

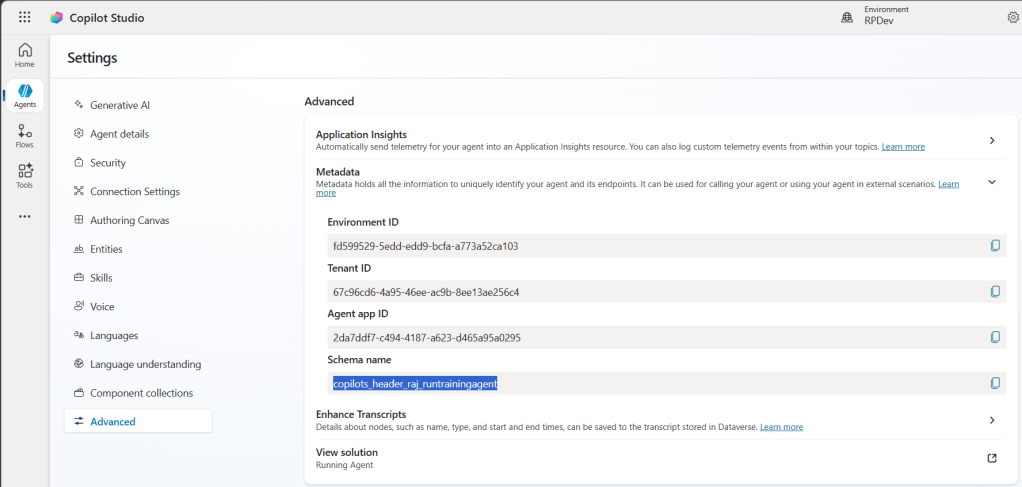

• Open the agent. Go to Settings > Advanced > Metadata and copy the Schema name

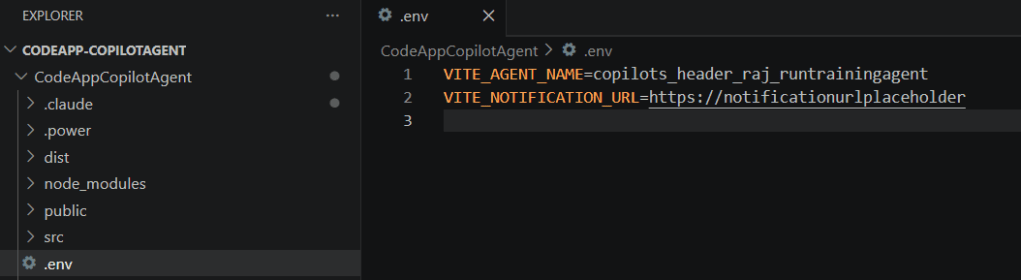

• Paste the copied schema name into your Code App’s .env file.

Deploy and Test the Code App:

• Once configured, build and push the Code App to your Power Platform environment:
  • npm run build   # verify no TypeScript errors first
  • pac code push   # deploy to Power Apps

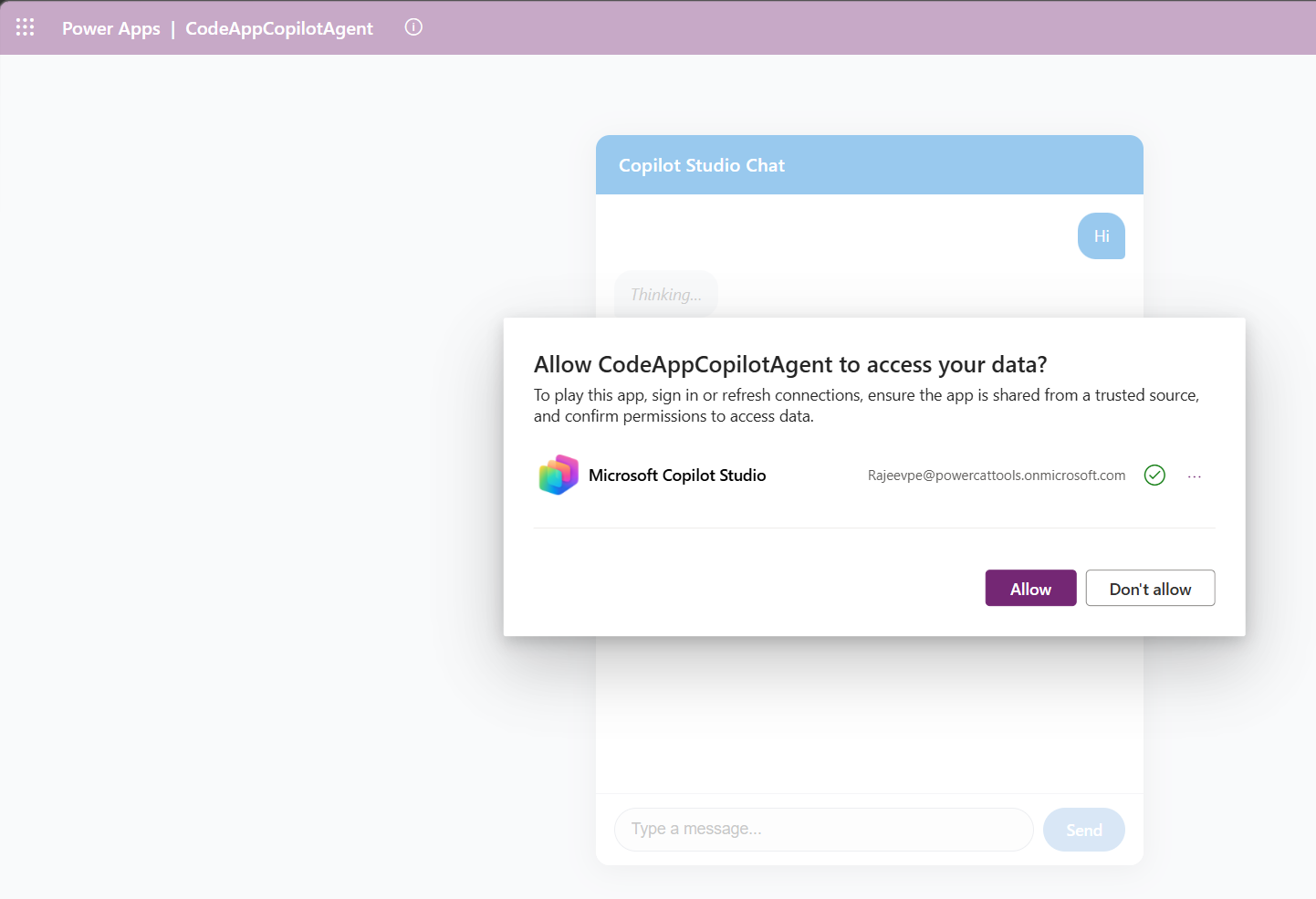

• Open the Code App and click Allow to authorize the Microsoft Copilot Studio connector.

• Then start chatting — you should see responses coming back from your agent.

Give It a Try:

Clone the repo, point it at your own Copilot Studio agent, and deploy : CodeApp-CopilotAgent.

Update your `.env` with your agent schema name, run `pac code push`, and you should have a working chat UI connected to your agent in minutes.

🙂
