If you need to quickly connect to the Dataverse WebAPI from a C# console and perform testing, this article will provide a code snippet for establishing a connection to the Dataverse WebAPI. We’ll explore the following connectivity options:

• Connecting via Client ID and Secret
• Connecting via User Id and Password

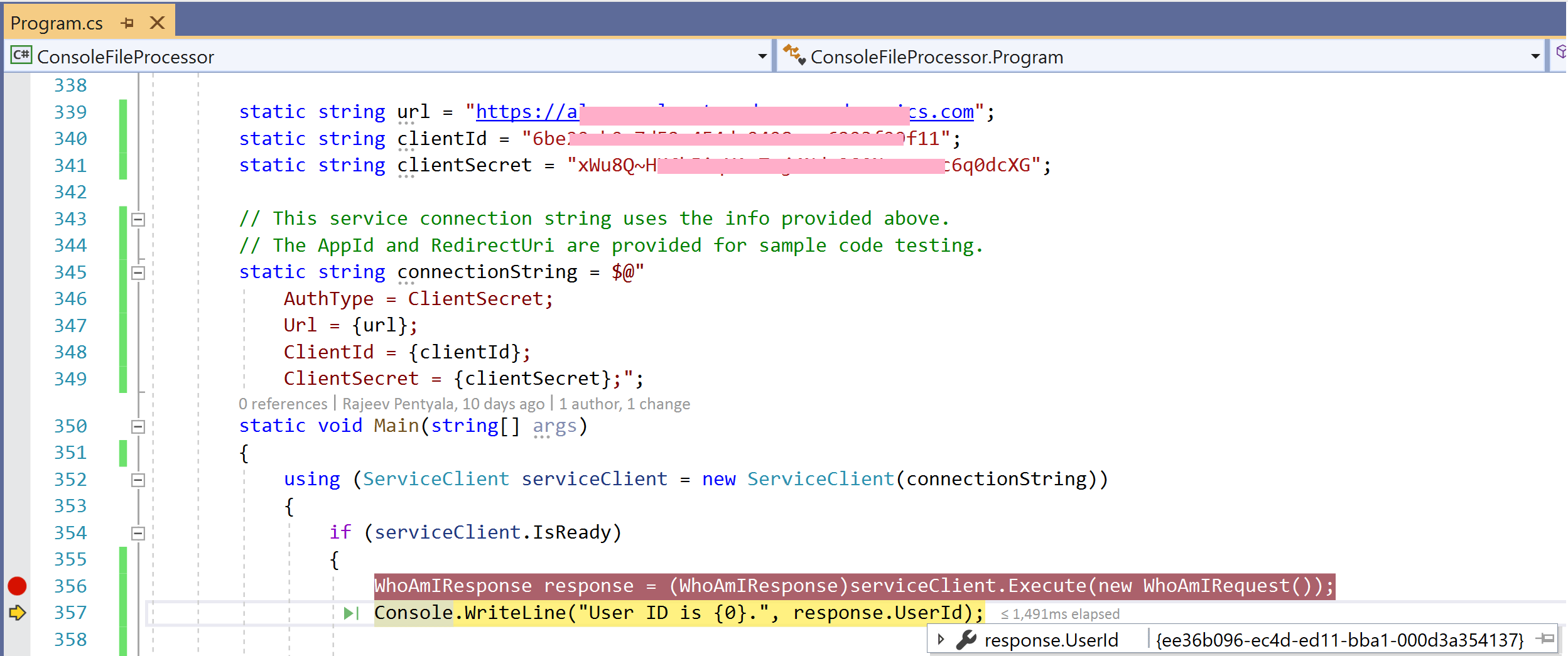

Connect Dataverse Web API using using Client Id and Secret:

As a prerequisite, make sure you have followed these steps and registered an app with Azure Active Directory.

Code Snippet:

        static string url = "https://xxxxxxx.crm.dynamics.com";
        static string clientId = "xxxx-7d52-454d-9499-xxxxxx";
        static string clientSecret = "xxxxxxx-Tsj4Nde3SONsomxxxxxxXG";

        // This service connection string uses the info provided above.
        // The AppId and RedirectUri are provided for sample code testing.
        static string connectionString = $@"
            AuthType = ClientSecret;
            Url = {url};
            ClientId = {clientId};
            ClientSecret = {clientSecret};";

        static void Main(string[] args)
        {
            using (ServiceClient serviceClient = new ServiceClient(connectionString))
            {
                if (serviceClient.IsReady)
                {
                    WhoAmIResponse response = (WhoAmIResponse)serviceClient.Execute(new WhoAmIRequest());
                    Console.WriteLine("User ID is {0}.", response.UserId);
                 }
              }
          }

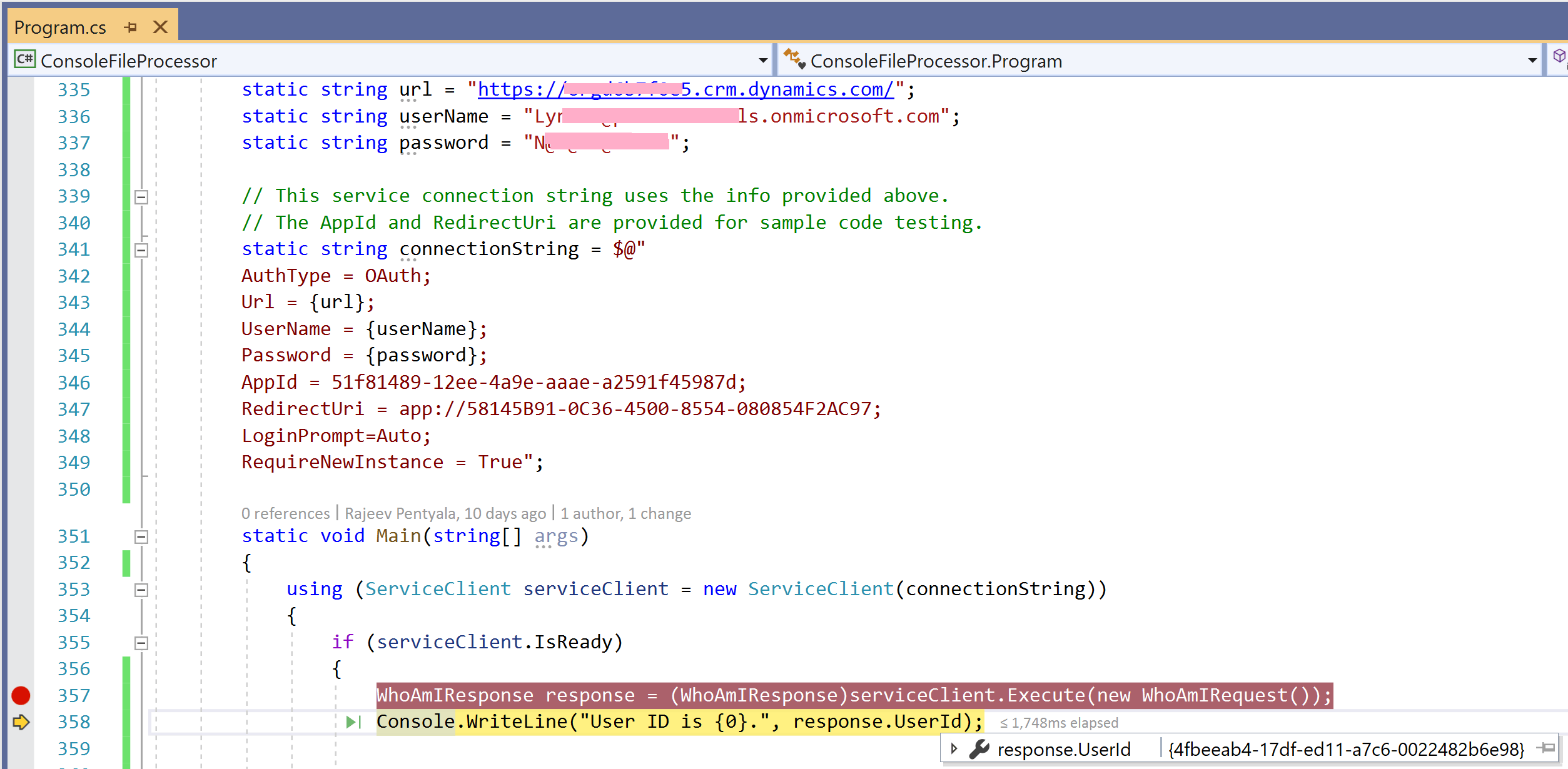

Connect Dataverse Web API using User Id and Password:

Code snippet:

        static string url = "https://xxxxx.crm.dynamics.com/";
        static string userName = "xxxx@xxxxxxx.onmicrosoft.com";
        static string password = "xxxxxxxx";

        // This service connection string uses the info provided above.
        // The AppId and RedirectUri are provided for sample code testing.
        static string connectionString = $@"
        AuthType = OAuth;
        Url = {url};
        UserName = {userName};
        Password = {password};
        AppId = 51f81489-12ee-4a9e-aaae-a2591f45987d;
        RedirectUri = app://58145B91-0C36-4500-8554-080854F2AC97;
        LoginPrompt=Auto;
        RequireNewInstance = True";

        static void Main(string[] args)
        {
            using (ServiceClient serviceClient = new ServiceClient(connectionString))
            {
                if (serviceClient.IsReady)
                {
                    WhoAmIResponse response = (WhoAmIResponse)serviceClient.Execute(new WhoAmIRequest());
                    Console.WriteLine("User ID is {0}.", response.UserId);
                 }
             }
        }

🙂
