Home > CRM 2016 > Build Auto Complete Text Box using Jscript – CRM 2016

Build Auto Complete Text Box using Jscript – CRM 2016

In CRM 2016, we got showAutoComplete and hideAutoComplete methods to configure the auto-completion experience in text controls in forms.

In this article, I am going to configure “Auto Complete” feature for my “Locality” text box on my Account form.

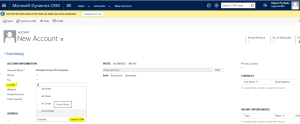

Auto Complete Localities

Auto Complete Localities

JScript:

function suggestLocality() {
// List of sample Locality names to suggest
accounts = [
{ name: ‘AA Street’, code: ‘A01’ },
{ name: ‘AB Street’, code: ‘A02’ },
{ name: ‘AC Street’, code: ‘A03’ },
{ name: ‘Benetten street’, code: ‘A04’ },
{ name: ‘Beverly Hills’, code: ‘A05’ },
{ name: ‘City Street’, code: ‘A06’ },
{ name: ‘City Power & Light’, code: ‘A07’ },
{ name: ‘Aruna Street’, code: ‘A08’ },
{ name: ‘Winery Street’, code: ‘A09’ },
{ name: ‘Coho Vineyard & Winery’, code: ‘A10’ },
{ name: ‘Zeebra Street.’, code: ‘A11’ }
];

var localityKeyPress = function (ext) {
try {
var userInput = Xrm.Page.getControl(“raj_locality”).getValue();
resultSet = {
results: new Array(),
commands: {
id: “sp_commands”,
label: “Explore CRM”, // Help link text
action: function () {
window.open(“http://rajeevpentyala.com”); // Help link URL
}
}
};

// Read the ‘Text’ entered in Locality field.
var userInputLowerCase = userInput.toLowerCase();
for (i = 0; i < localities.length; i++) {
if (userInputLowerCase === localities[i].name.substring(0, userInputLowerCase.length).toLowerCase()) {
resultSet.results.push({
id: i,
fields: [accounts[i].name]
//, icon:<url> — Its an option field. You can show icon next to the Auto populated text.
});
}
if (resultSet.results.length >= 10) break;
}

if (resultSet.results.length > 0) {
// If matches found; Show the Auto complete text area with matched localitites (i.e., Up to 10)
ext.getEventSource().showAutoComplete(resultSet);
} else {
// If no match found; Hide the Auto complete text area.
ext.getEventSource().hideAutoComplete();
}
} catch (e) {
alert(“Error while auto complete – ” + e.description);
}
};

// Attach Key Press event to ‘Locality’ text box
Xrm.Page.getControl(“raj_locality”).addOnKeyPress(localityKeyPress);
}

How do I use it:

  • Copy the “suggestLocality” function and create a web resource in CRM.
  • Register the “suggestLocality” function on onload event of Account form.

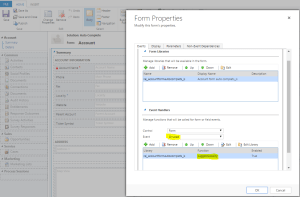

Auto Complete Onload Event

Auto Complete Onload Event

  • Publish the Customization’s.
  • Open an Account and start typing in “Locality” text box.
Auto Complete Localities

Auto Complete Localities

  • You can extend the script by instead of hard coding Localities, you can read from any existing entity and populate the list.

Important Notes on Auto Complete feature:

  • “Auto Complete” show up to 10 matching strings in a drop-down list as users press keys to type character in a specific text field.
  • These methods aren’t supported for the CRM mobile clients (phones or tablets).

🙂
