Reading related records using OData and Jscript – CRM 2011

I have 1:N relationship between “Contact” entity and custom entity “Bikes” (i.e., 1 contact can have N no of Bikes).

If I want to read all “Bikes” along with my “Contact” information using OData service, I can use the “$expand” keyword of OData protocol.

Below is the generic function to prepare the OData URL and make a Asynchronous service call

function retrieveMultiple(odataSetName, select, filter, expand, successCallback) {

var serverUrl = Xrm.Page.context.getServerUrl();

var ODATA_ENDPOINT = “/XRMServices/2011/OrganizationData.svc”;

var odataUri = serverUrl + ODATA_ENDPOINT + “/” + odataSetName + “?”;

if (select) {

odataUri += “$select=” + select;

}

if (expand) {

odataUri += “&” + “$expand=” + expand;

}

if (filter) {

odataUri += “&” + “$filter=” + filter;

}

$.ajax({

type: “GET”,

contentType: “application/json; charset=utf-8”,

datatype: “json”,

url: odataUri,

beforeSend: function (XMLHttpRequest) {

XMLHttpRequest.setRequestHeader(“Accept”, “application/json”);

},

success: function (data, textStatus, XmlHttpRequest) {

if (successCallback) {

if (data && data.d && data.d.results) {

successCallback(data.d.results, textStatus, XmlHttpRequest);

}

else if (data && data.d) {

successCallback(data.d, textStatus, XmlHttpRequest);

}

else {

successCallback(data, textStatus, XmlHttpRequest);

}

}

},

error: function (XmlHttpRequest, textStatus, errorThrown) {

if (XmlHttpRequest && XmlHttpRequest.responseText) {

alert(“Error while retrieval of ” + odataSetName + ” ; Error – ” + XmlHttpRequest.responseText);

}

}

});

}

How do I use above function

  • Consider my “Contact” & “Bike” scenario and set required the columns and “expand” option and call the above “retrieveMultiple” function
  • Below is the function to define properties

function retrieveBikesByContactId() {

// Pass ‘Contact’ set name

var oDataSetName = “ContactSet”;

// Set Contact GUID

var contactId = {Contact GUID};

// Prepare filter

var filter = “ContactId eq guid'” + contactId + “‘”;

// Set expand (i.e., Relationship name of ‘Contact’ and ‘Bike’)

var expand = “honda_contact_honda_bikeinformation”;

// Column names of ‘Contact’ and ‘Bikes’

// Since Bike is related entity specify Bike columns as (Relationship name\column name) (i.e., honda_contact_honda_bikeinformation/honda_name)

var columns = “FullName,honda_contact_honda_bikeinformation/honda_name,honda_contact_honda_bikeinformation/honda_Year”;

retrieveMultiple(oDataSetName, columns, filter, expand, readDataOnSuccess);

}

  • After the success of data retrieval, parse the result using “readDataOnSuccess” method

function readDataOnSuccess(data, textStatus, XmlHttpRequest) {

if (data && data.length > 0) {

for (var indx = 0; indx < data.length; indx++) {

if (data[indx].honda_contact_honda_bikeinformation) {

              // Read the child entity records using “expand.results” (i.e., honda_contact_honda_bikeinformation.results)

var childResults = data[indx].honda_contact_honda_bikeinformation.results;

for (var indxChild = 0; indxChild < childResults.length; indxChild++) {

alert(childResults[indxChild].honda_name);

}

}

}

}

}

Use the “OData Query Designer” tool to get the “expand” name and column names

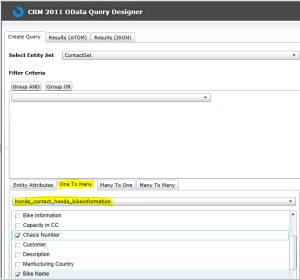

  • To get related entity record fields, click “One To Many” tab and choose the relationship
Get Related Entity Fields

Get Related Entity Fields

URL with Related records columns

URL with Related records columns

Related records result set

Related records result set
